Replacement
1.

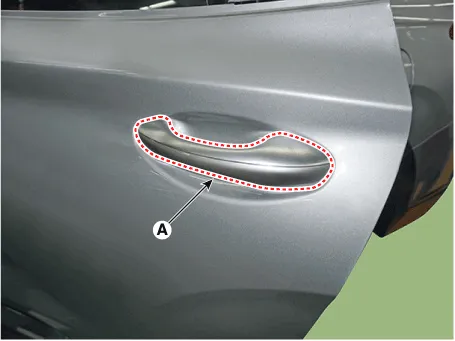

Remove the plug hole and loosen the mounting bolt, remove the rear door outside handle (A).
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

2.
To install, reverse removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

    Component Location 1. Rear Door Outside Handle

    Component Location 1. Rear Door Latch
