Hyundai Santa Fe (TM): Rear Door / Rear Door Outside Handle. Components and components location

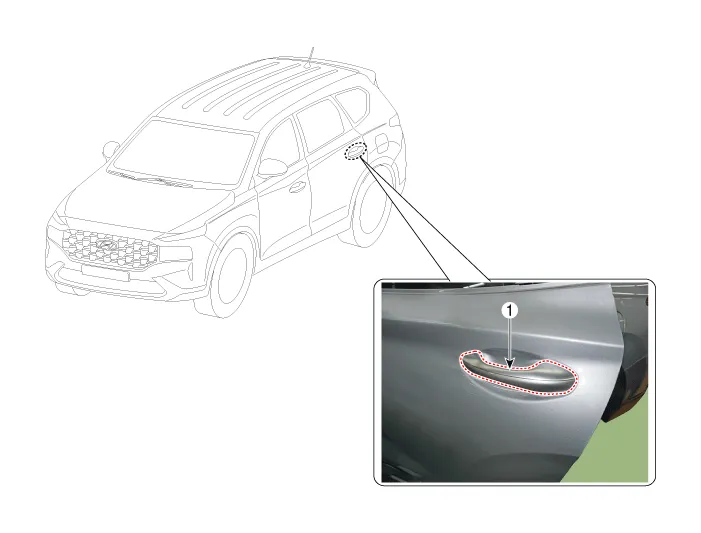

| Component Location |
| 1. Rear Door
Outside Handle |
Replacement 1. Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass") 2.
Replacement 1. Remove the plug hole and loosen the mounting bolt, remove the rear door outside handle (A). Tightening torque : 7.
