Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
3.

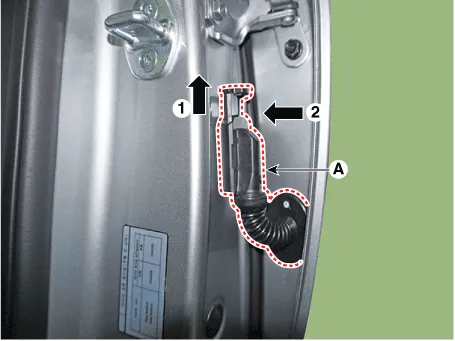

Press the lock pin and separate the rear door main connector (A).
4.

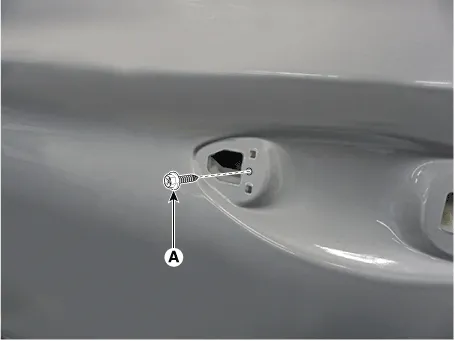

Loosen the rear door out side handle base mounting screw (A).
5.

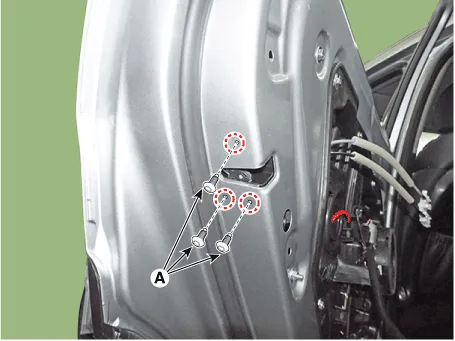

Loosen the rear door latch mounting screw (A).
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

6.

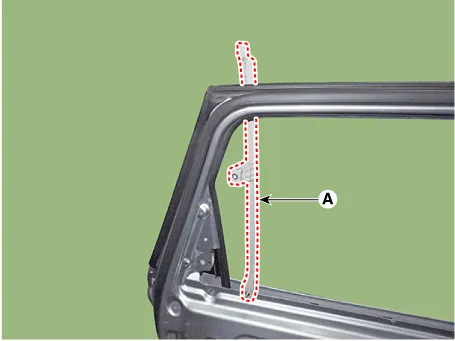

Remove the rear door channel (A).
7.

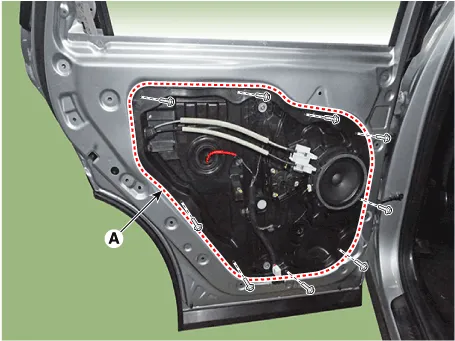

Loosen mounting bolts and remove the rear door module (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

8.

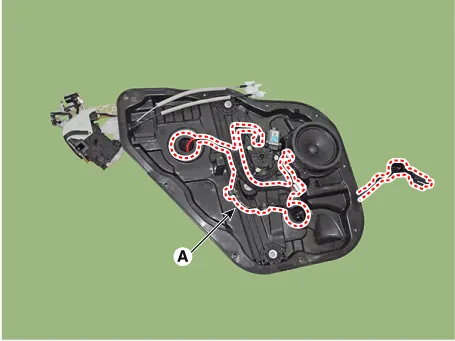

Remove the rear door main wiring (A).
9.
To install, reverse removal procedure.

•
Make sure connectors are connected properly and each rod is connected securely.
•
Make sure the door locks / unlocks and opens / closes properly.
