Hyundai Santa Fe (TM): Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures
| Replacement |
| 1. |
Pull down the rear door window glass to the lowest level by pressing
the power window glass switch.
|
| 2. |

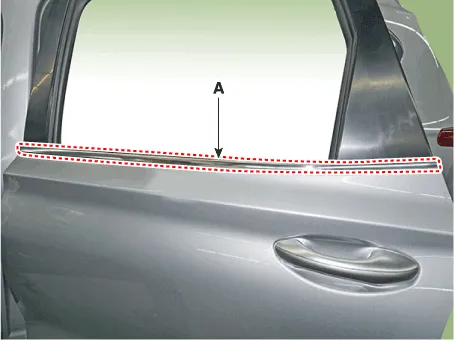

After loosening the mounting screws, remove the rear door belt outside
weartherstrip (A) by pulling it upward.
|
| 3. |
To install, reverse removal procedure.
|
