Hyundai Santa Fe (TM): Rear Suspension System / Rear Coil Spring. Repair procedures
| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

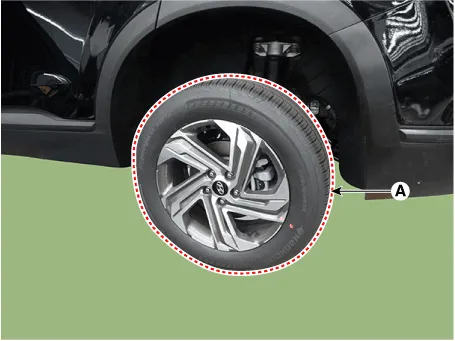

Remove the rear wheel and tire (A) from rear hub.
|
| 3. |

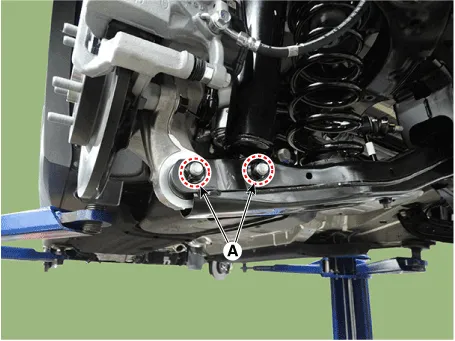

Remove the rear lower arm from the rear axle after loosening the mounting
bolts and nuts (A).
|
| 4. |

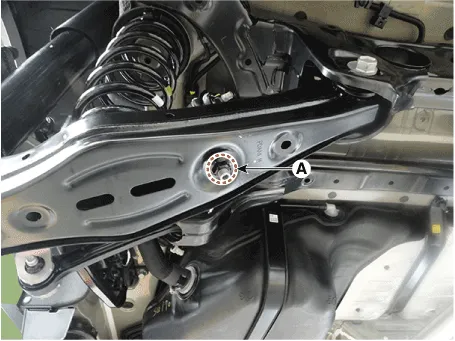

Remove the stabilizer bar link from the rear lower arm after loosening
the mounting nut (A).
|
| 5. |

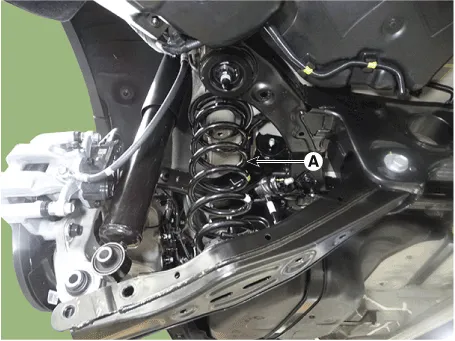

Remove the coil spring (A).
|
| Inspection |
| 1. |
Check the spring for distortion, aging or damage.
|
| 2. |
Check the spring upper pad and lower pad for aging or damage.
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
