Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the second row seat back cover[LH].
(Refer to Rear Seat -"Rear Seat Back Cover")
2.

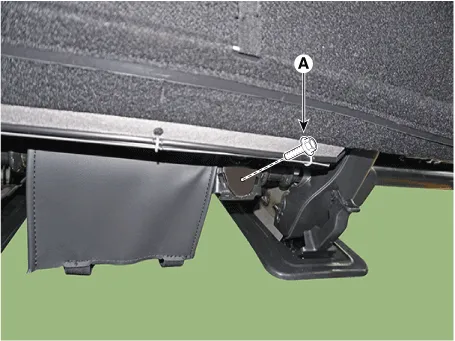

Loosen the rear center seat belt lower anchor mounting bolt (A) at the bottom of the second row seat cushion [LH].
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

3.

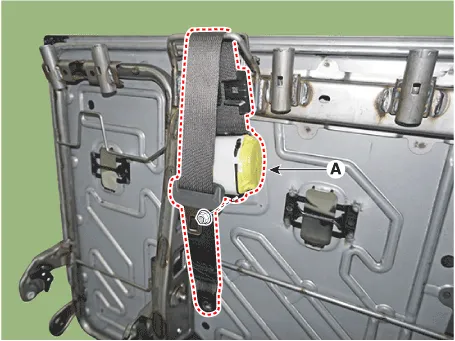

Loosen the mounting nut and remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

4.
To install, reverse removal procedure.

•
Replace any damaged clips.

    Component Location 1. Rear center seat belt retractor

    Component Location [Second row seat belt buckle] 1. Second row seat belt buckle [LH] 2. Second row center seat belt buckle 3.
