Hyundai Santa Fe (TM): Rear Bumper / Rear Bumper beam Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper beam Assembly. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear bumper assembly.
(Refer to Rear Bumper - "Rear Bumper Assembly")
2.

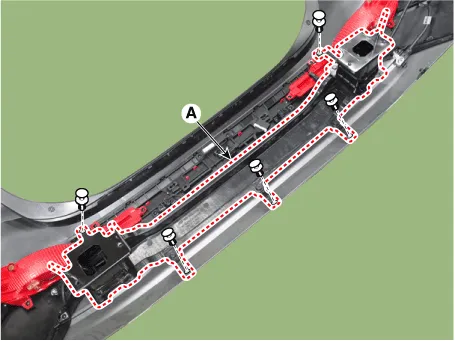

After loosening the mounting clips, remove the rear bumper beam assembly (A).
3.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear Bumper Beam Assembly
