Hyundai Santa Fe (TM): Front Bumper / Radiator Grill. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Bumper / Radiator Grill. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front bumper assembly.
(Refer to Front Bumper - "Front Bumper Assembly")
2.

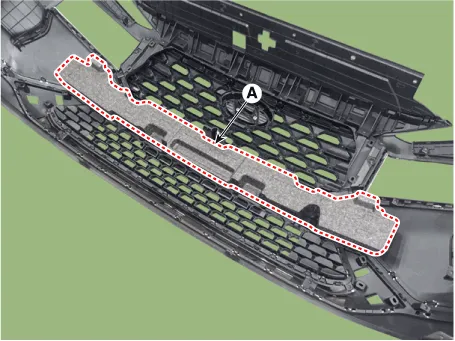

Remove the front bumper energy absorber (A).
3.

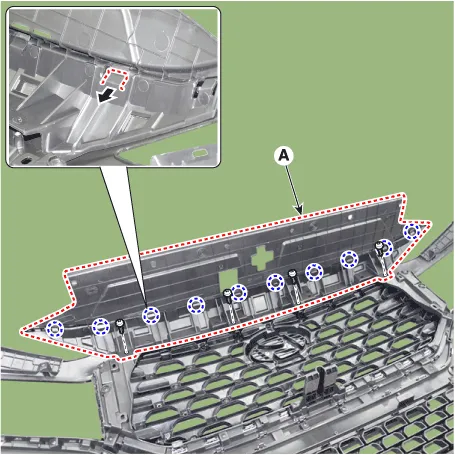

After loosening the mounting screws, remove the front bumper upper cover (A).
4.
Loosen the mounting screws, remove the side front bumper molding (A).
5.
Loosen the mounting screws, remove the license plate bracket (A).
6.

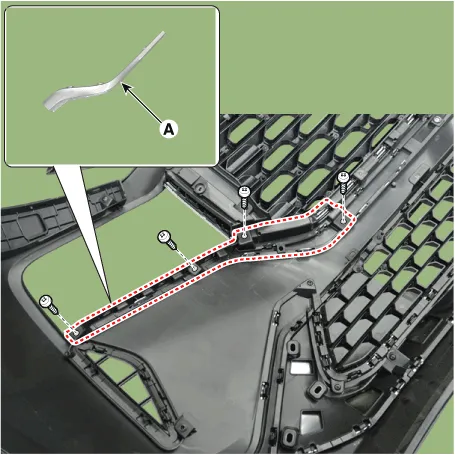

Loosen the mounting screws, remove the center front bumper molding (A).
7.

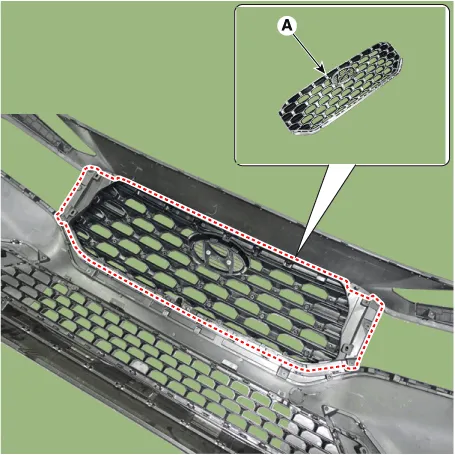

After loosening the mounting screws, remove the radiator grill (A).
8.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Radiator Grill
