Hyundai Santa Fe (TM): Power Windows / Power Window Switch. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Windows / Power Window Switch. Repair procedures

Diagnosis with diagnostic tool
Diagnosis with diagnostic tool
1.

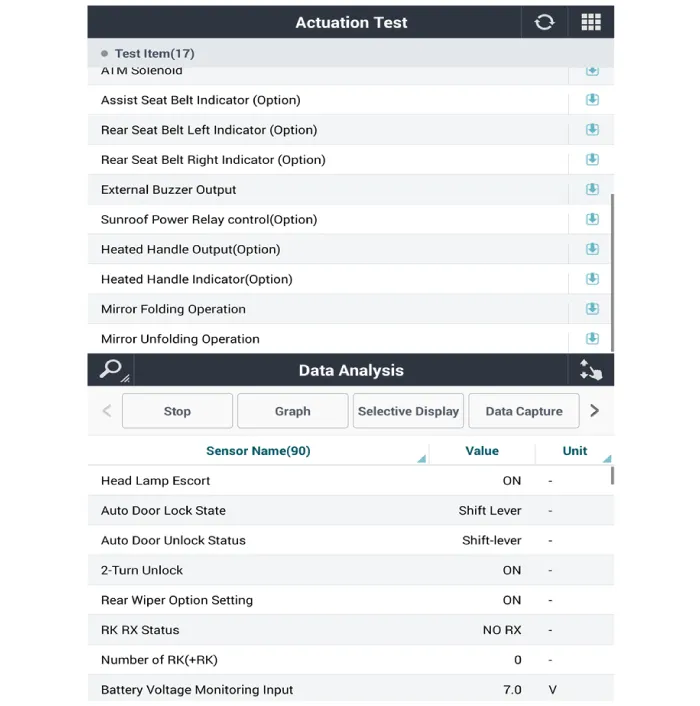

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).
The diagnostic system (diagnostic tool) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.

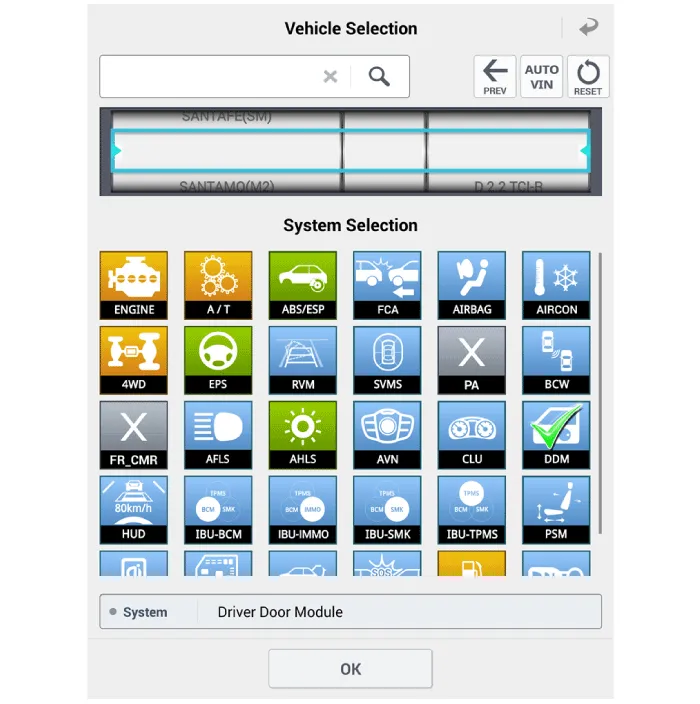

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".
3.
Select the 'Data Analysis' and 'Car model'.
4.

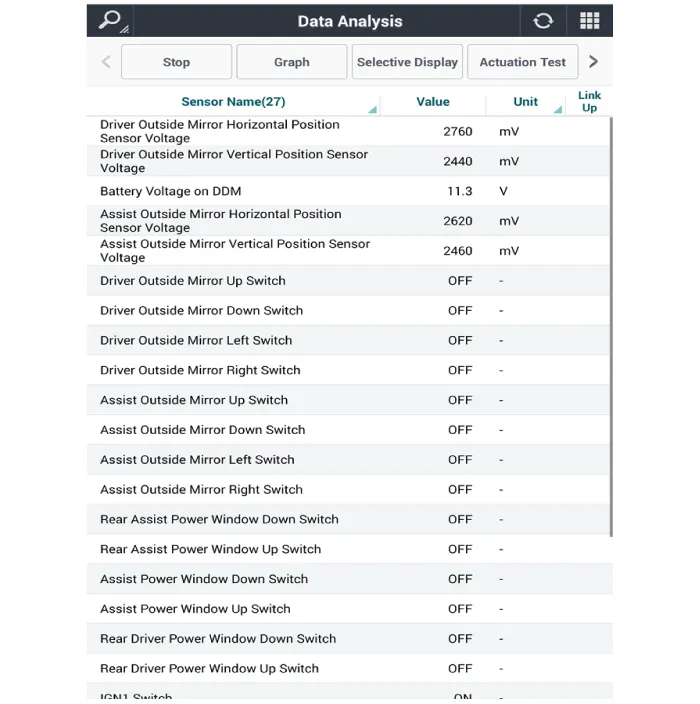

Select the 'DDM' to search the current state of the input/output data.
5.
To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.
Removal
Driver Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

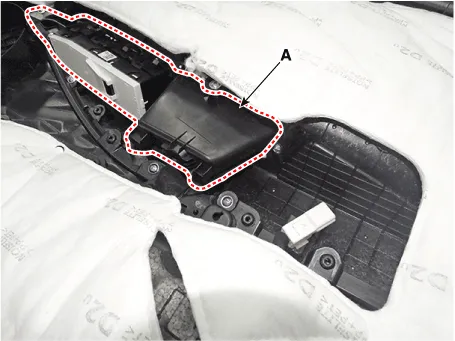

Remove the power window bezzel assembl (A) after loosening the mounting screws.
4.

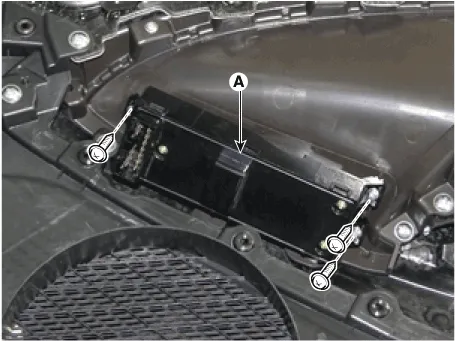

Remove the power window switch assembly (A) after loosening the mounting screws.
Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

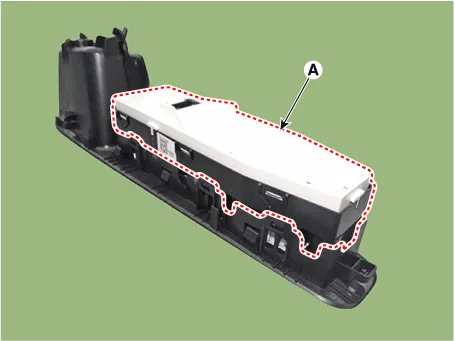

Remove the power window switch assembly (A) after loosening the mounting screws.
Rear Power Window Swtich
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.

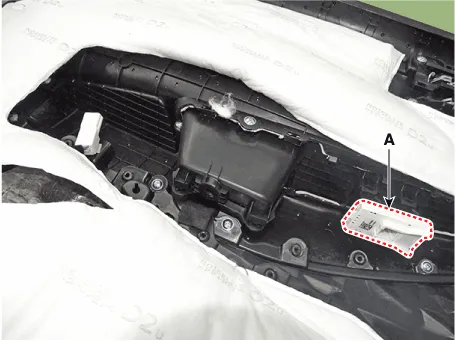

Remove the power window switch assembly (A) after loosening the mounting screws.
4.

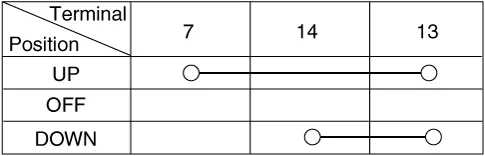

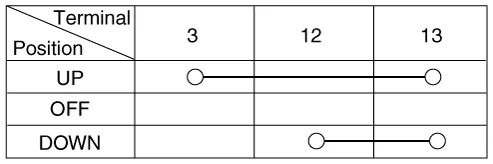

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[Manual Window]

[Safety Window]
Installation
Driver Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.
Assist Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.
Rear Power Window Swtich
1.
Install the power window switch assembly.
2.
Install the rear door trim after connecting the connector.

    Circuit Diagram [Driver Power Window Switch] Driver safety switch Front safety switch ALL safety switch [Assist Power Window Switch] [Rear Power Window Switch]
