Hyundai Santa Fe (TM): Power Windows / Power Window Switch. Components and components location
| Components |

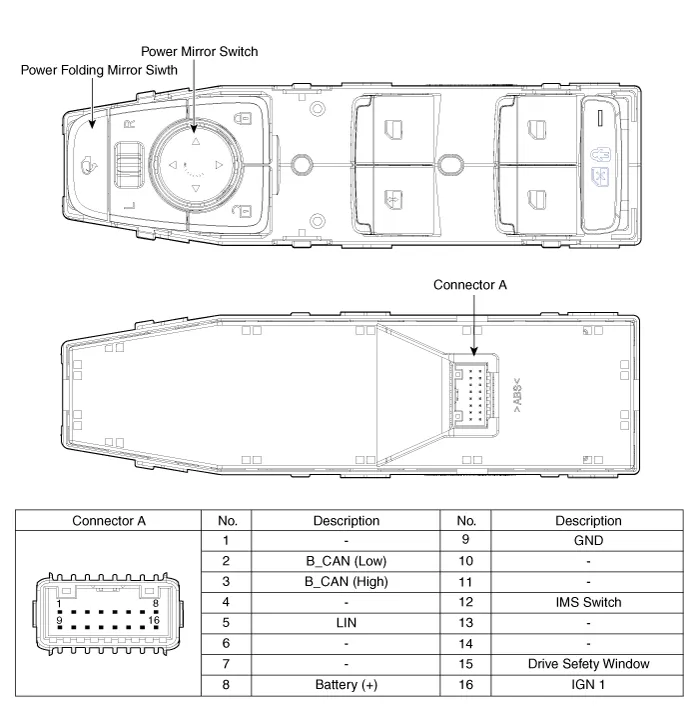

| [Driver Power Window Switch] |

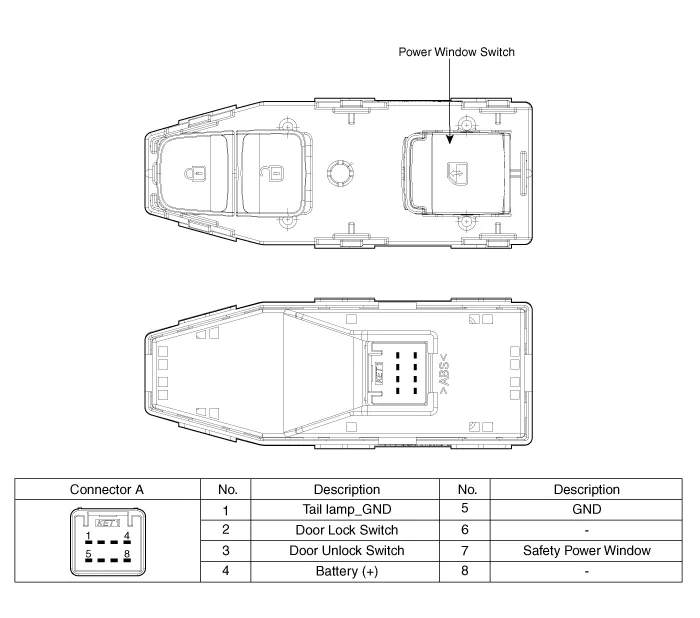

| [Assist Power Window Switch] |
| [Rear Power Window Switch] |
Inspection Front Power Window Motor 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim.
Circuit Diagram [Driver Power Window Switch] Driver safety switch Front safety switch ALL safety switch [Assist Power Window Switch] [Rear Power Window Switch]
