Hyundai Santa Fe (TM): Power Tailgate Module / Power Tailgate Unit. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit. Components and components location

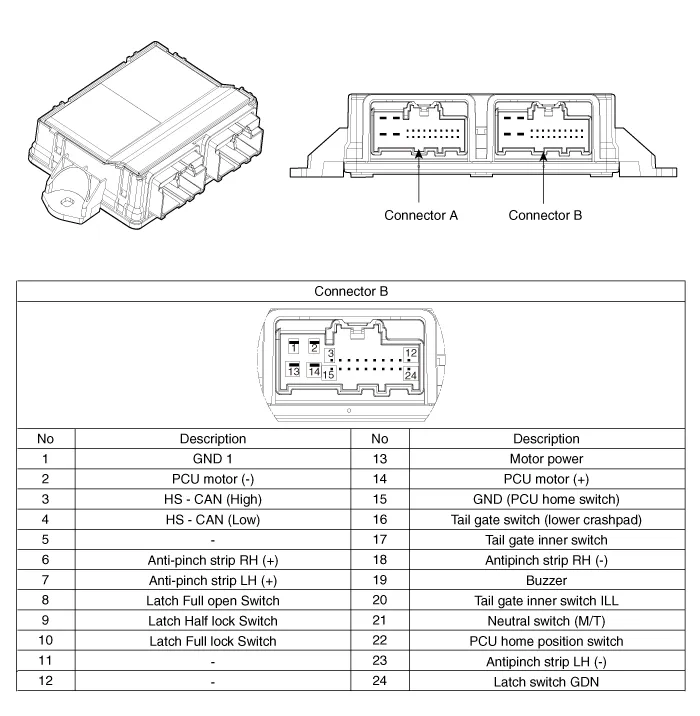

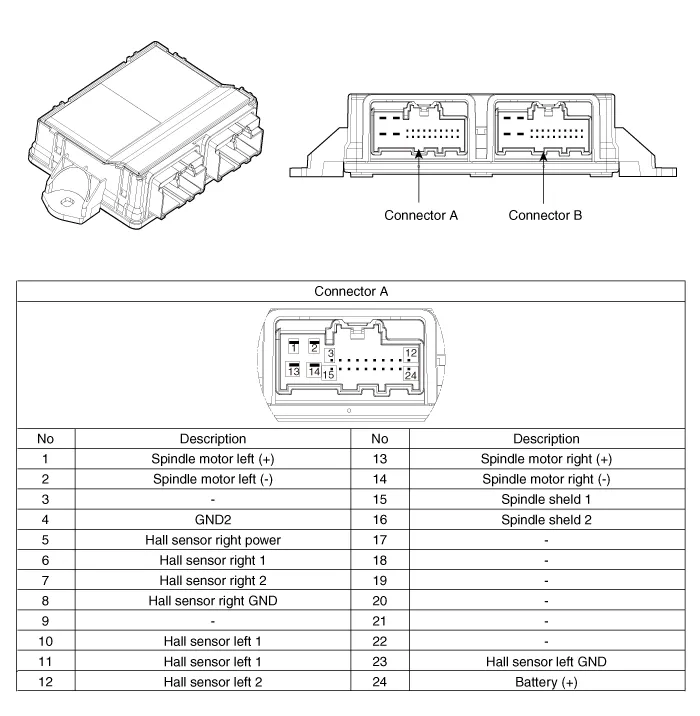

| Components |
Failure Inspection Diagnosis with diagnostic tool 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).
Circuit Diagram
