Hyundai Santa Fe (TM): Seat Electrical / Power Seat Control Switch. Repair procedures

Inspection

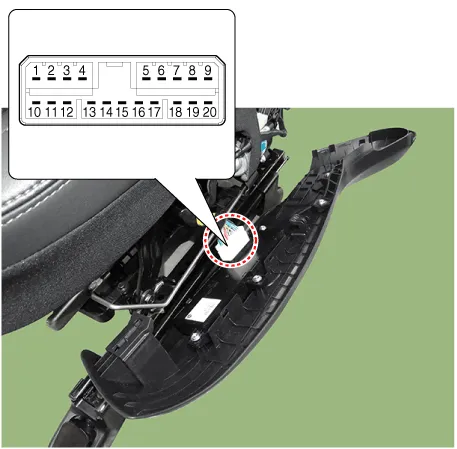

1.	With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

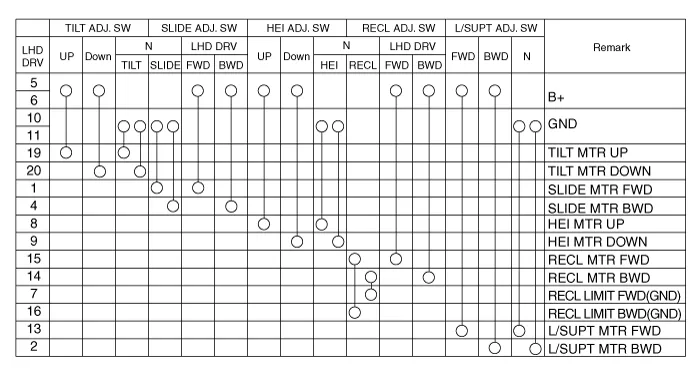

[Driver Power Seat Control Switch (Without IMS)]

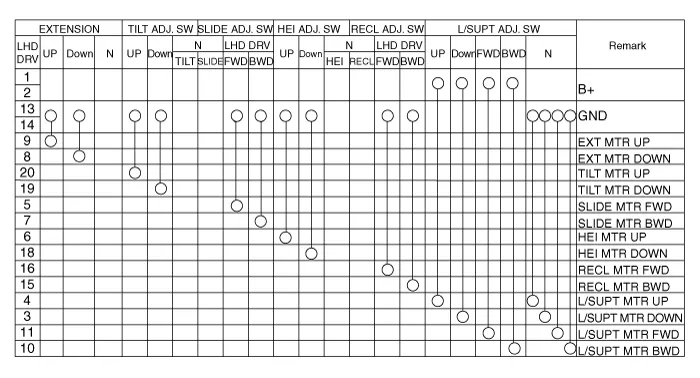

[Driver Power Seat Control Switch (With IMS)]

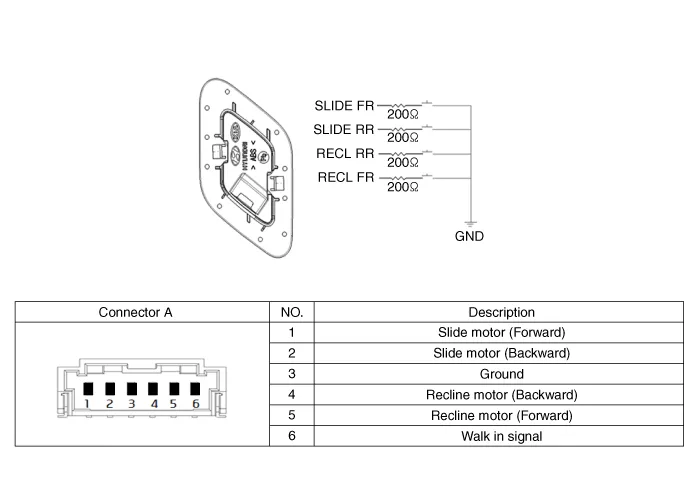

[Passenger Walk-in Switch]

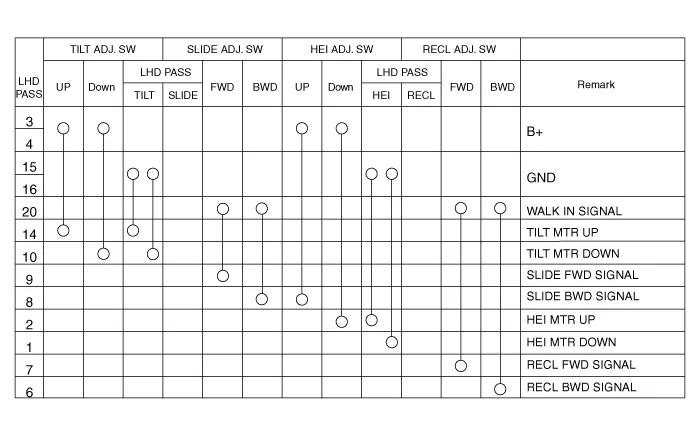

[Passenger Power Seat Control Switch]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat shield outer cover. (Refer to Body - "Front Seat Shield Outer Cover")

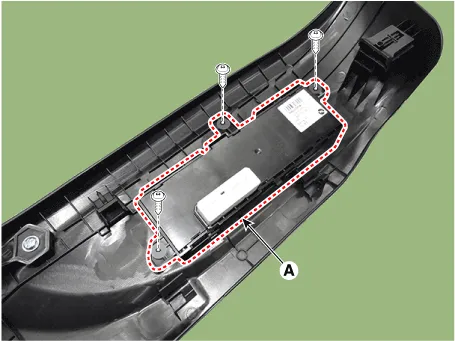

3.	Remove the power seat control switch (A) after loosening the screws (2EA).

Installation

1.	Install the power seat control switch after connecting the connector.

2.	Install the front seat shield outer cover.

3.	Connect the negative (+) battery terminal.

Circuit Diagram Driver (Without IMS) Driver (With IMS) Passenger

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat back cover.
