| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |

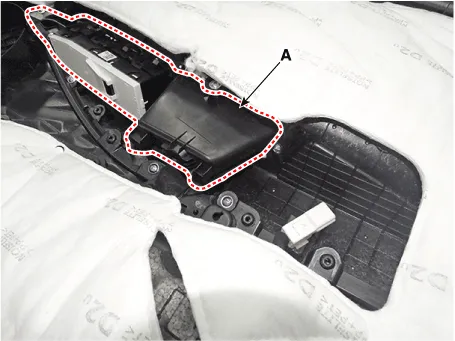

Remove the power window bezzel assembl (A) after loosening the mounting
screws.
|
| 4. |

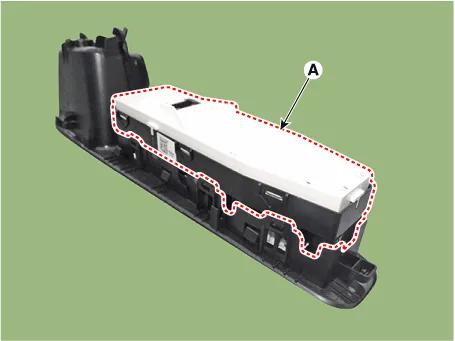

Remove the power window switch assembly (A) after loosening the mounting
screws.
|
| Installation |
| 1. |
Install the power mirror switch.
|
| 2. |
Install the front door trim after connecting the connector.
|
| 3. |
Connect the negative (-) battery terminal.
|
| Inspection |
| 1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (diagnostic tool).
The diagnostic system (diagnostic tool) provides the following information.
|
| 2. |

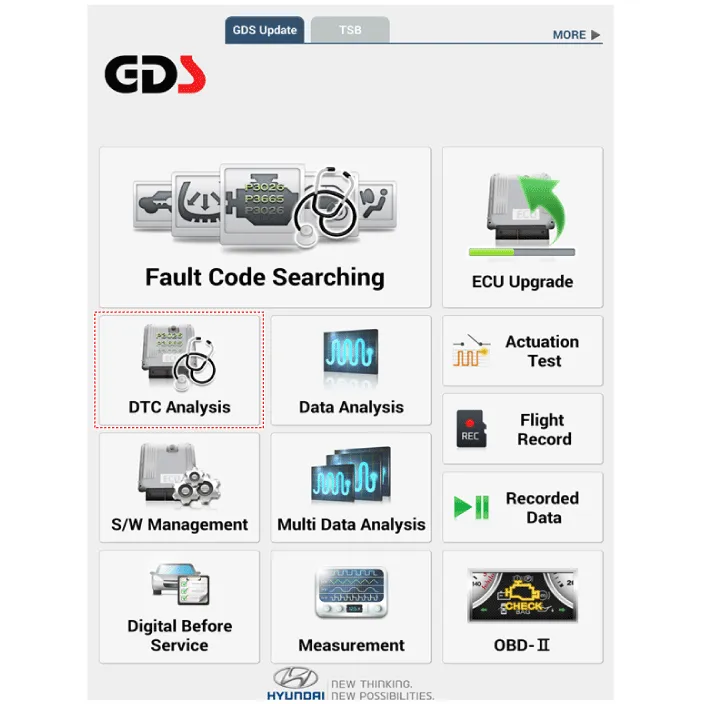

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and
"Vehicle".
|
| 3. |

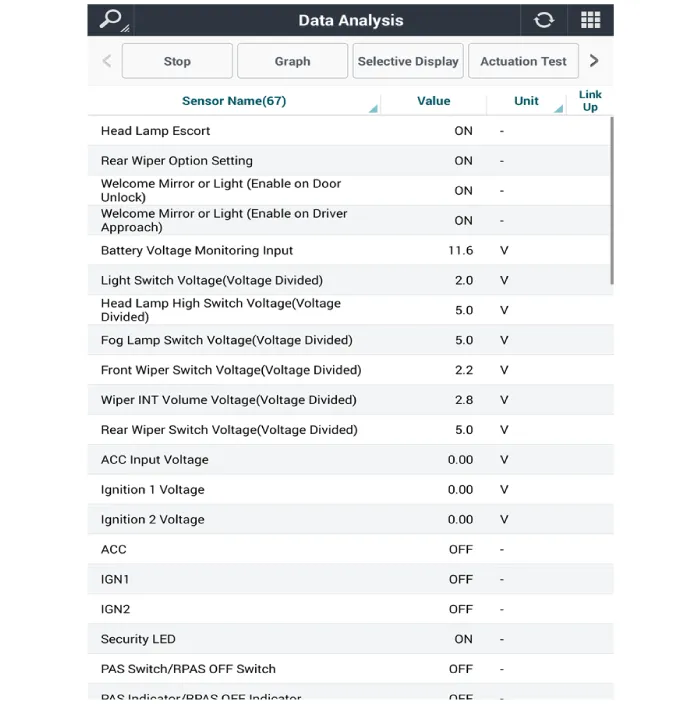

If check current status, select the "Data Analysis" and "Car model".
|
| 4. |

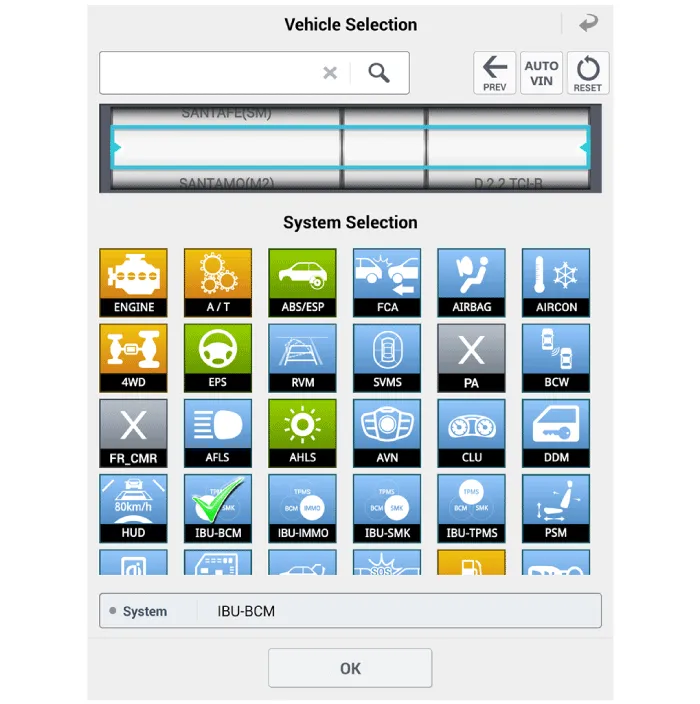

Select the 'IBU_BCM' to search the current state of the input/output
data.
|
| 5. |

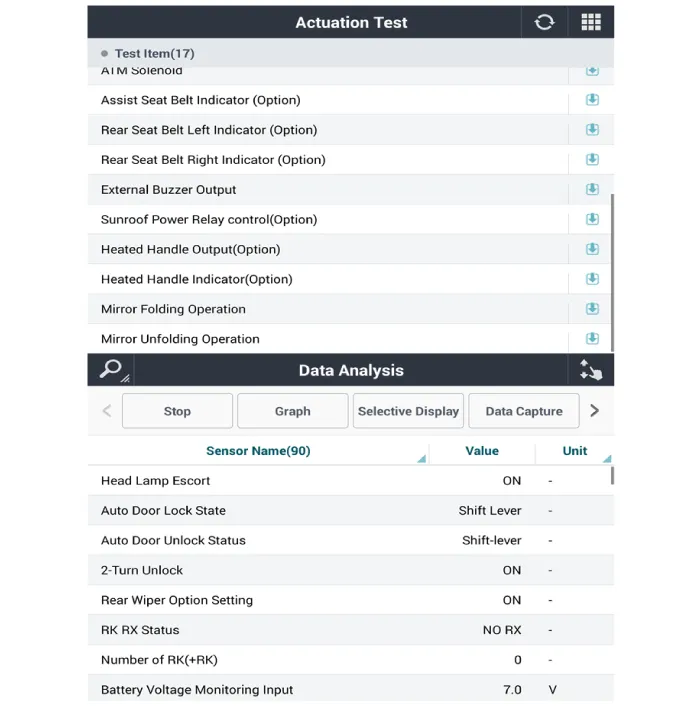

To forcibly actuate the input value of the module to be checked, select
option 'Actuation Test'.
|
