Hyundai Santa Fe (TM): Panorama Sunroof / Panorama Sunroof Deflector. Repair procedures
| Replacement |
| 1. |
Open movable glass completely pressing panorama sunroof switch.
|
| 2. |

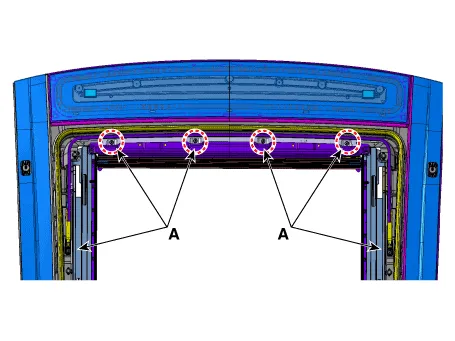

Loosen the panorama sunroof deflector mounting screws (A).
|
| 3. |
Remove the panorama sunroof deflector braket (A) by pushing it in the
direction of the arrow.
|
| 4. |
To install, reverse the removal procedure.
|
