Hyundai Santa Fe (TM): Panorama Sunroof / Panorama Sunroof Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Panorama Sunroof Assembly. Repair procedures

Removal

•
In order to remove panorama sunroof assembly use tools as follows.
[Tools block diagram]

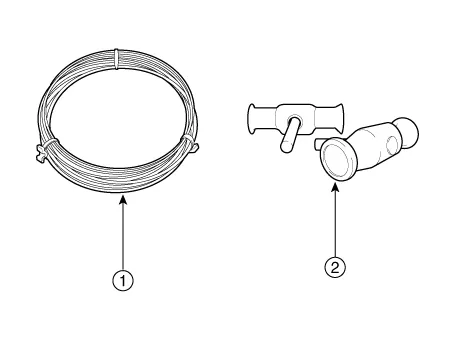

① Square wire
② Insert type wire grip

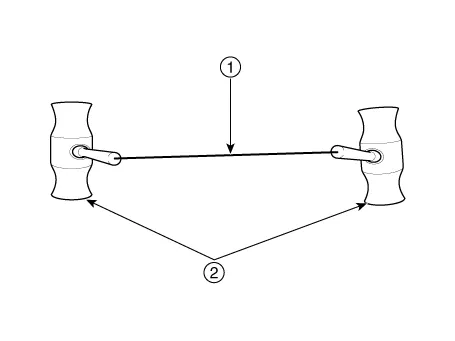

[Tools assembly diagram]
•
Tighten square wire ① inserting it in the hole of Insert type wire grip ②

1.
Remove the roof side molding.
2.
Remove the roof trim.
3.
Remove the front glass.
4.
Completely close the movable glass using the panorama sunroof switch.
5.
Remove the window glass.
6.
Remove the rear glass.
7.

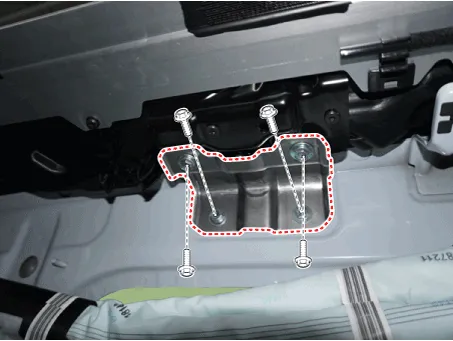

Remove the panorama sunroof side bracket.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

8.

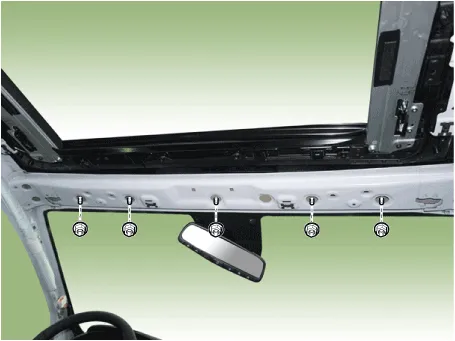

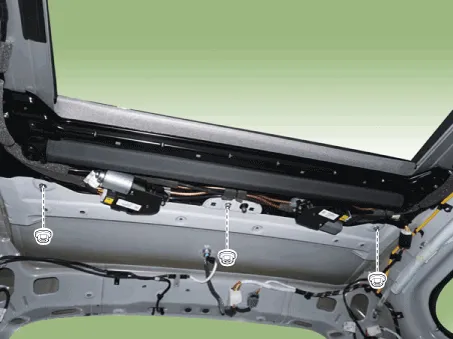

Loosen the panorama sunroof mounting nuts (A).
[Front]
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

[Rear]
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

9.

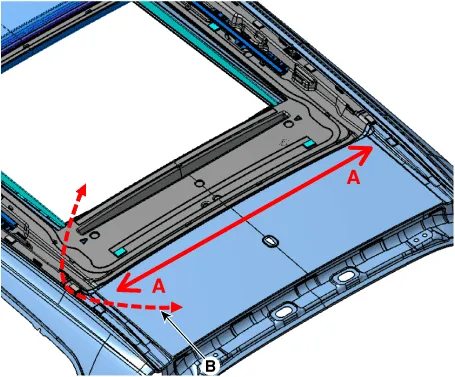

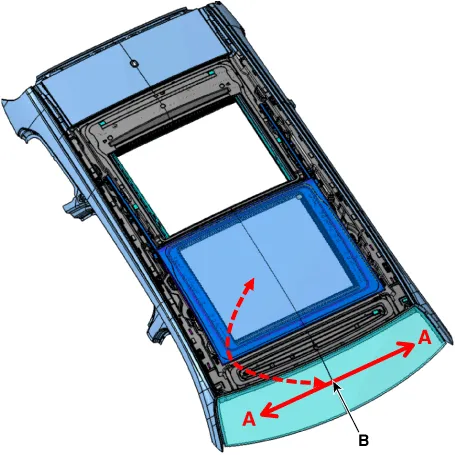

Cut sealant in edge side front (A) pulling wire (B) from left to right.

•
Wear gloves not to get hurt in the hand.
•
Be careful not to be burned in the hand by too much heat using wire.
•
Work carefully because wire can be cut.

•
Use protective tape when removing parts with screw driver or remover not to damage the parts.
•
Give attention not to damage body.

•
More than two people should work together when using wire.

10.
Cut sealant between edge side front (A-A) pulling wire (B) from left to right.

•
Wear gloves not to get hurt in the hand.
•
Be careful not to be burned in the hand by too much heat using wire.
•
Work carefully because wire can be cut.

•
Use protective tape when removing parts with screw driver or remover not to damage the parts.
•
Give attention not to damage body.

•
More than two people should work together when using wire.

11.

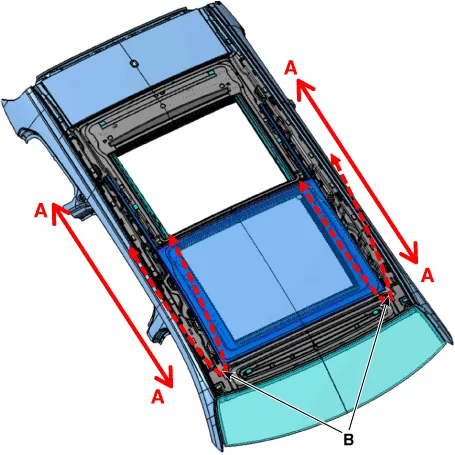

Cut sealant between edge side (A-A) pulling wire (B) from left to right.

•
Wear gloves not to get hurt in the hand.
•
Be careful not to be burned in the hand by too much heat using wire.
•
Work carefully because wire can be cut.

•
Use protective tape when removing parts with screw driver or remover not to damage the parts.
•
Give attention not to damage body.

•
More than two people should work together when using wire.

12.
Cut sealant between edge side rear (A-A) pulling wire (B) from left to right.

•
Wear gloves not to get hurt in the hand.
•
Be careful not to be burned in the hand by too much heat using wire.
•
Work carefully because wire can be cut.

•
Use protective tape when removing parts with screw driver or remover not to damage the parts.
•
Give attention not to damage body.

•
More than two people should work together when using wire.

13.
After every edge side sealant is cut, remove panorama sunroof assembly (A).

•
When removal of the panorama sunroof assembly be careful not to damage.

14.

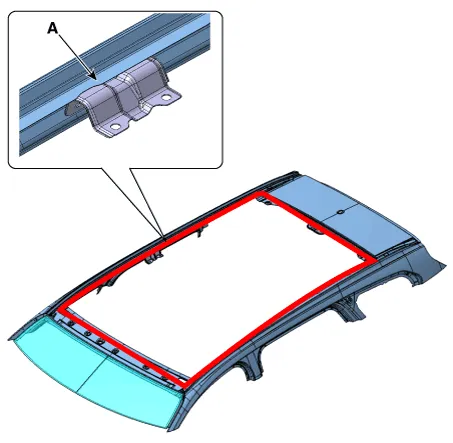

Use a blade to cut off residual sealant (A) around body panel.

•
When cutting off the residual sealant around the body panel, make sure to leave about the thickness of 2 mm from the adhesive surface.

•
Make sure that the body paint surface is not damaged at all.
•
If it is damaged, apply paint or rust inhibitor for maintenance.

Installation

•
In order to install panorama sunroof assembly use tools as follows.
[Tools block diagram]

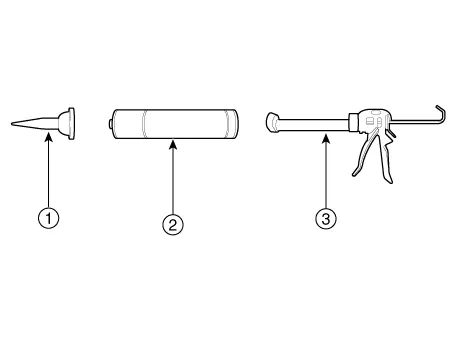

① Sealant nozzle
② Adhesive sealant only for glass
③ Sealant gun

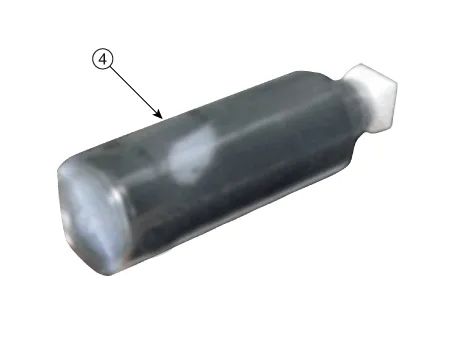

④ Primer

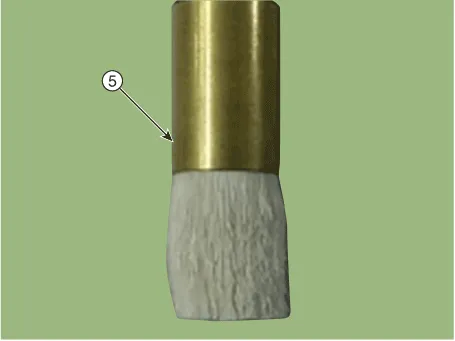

⑤ Primer application brush
1.
Use alcohol or an air gun to clean up the edges of the body panel and panorama sunroof frame.
2.
Use a primer application brush to apply primer around the body panel and panorama sunroof frame.
3.
Use a sealant gun to apply sealant around the body panel (A) after applying the primer.

•
When using a sealant gun to apply the sealant, make sure that the sealant is not cracked to prevent water leaks.

4.
Carefully install panorama sunroof on body flange set by centering device hole (A).

5.

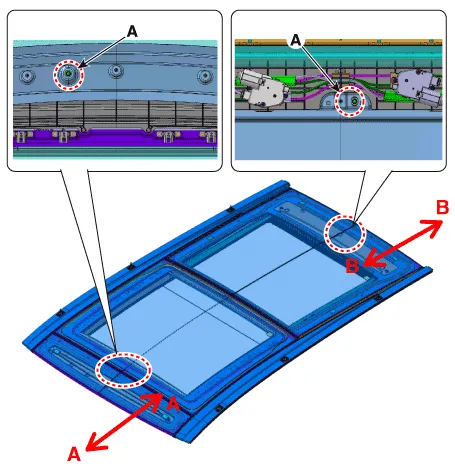

Check steps and gaps for every side.
　
Suction
Step
Gap
Front
 A-A
 2 ± 1
 6.4 ± 1
Rear
 B-B
 0 ± 1
 5 ± 1

6.
Tighten the panorama sunroof fixing nuts.
[Front]
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

[Rear]
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

7.
Install the panorama sunroof side bracket.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

8.
Perform water leak test.

•
Avoid water flow to touch adhesive surface directly and let water flow to side of the glass.
9.
If water leak occurs, apply sealant on leakage spot.

•
After panorama sunroof is installed vehicle should be parked on flat place 4 hours at least.
•
If vehicle should be run, drive slowly within 8 hours at least.
•
Alert the driver to avoid driving the car aggressively for 2-3 days, or avoid driving in on irregular road surfaces.
10.
Install the roof trim.
11.
Install the rear roof molding and roof rack.

    Component 1. Panorama Sunroof Assembly
