Inspection
1.

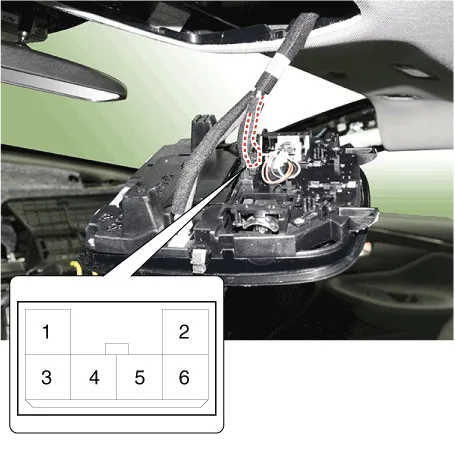

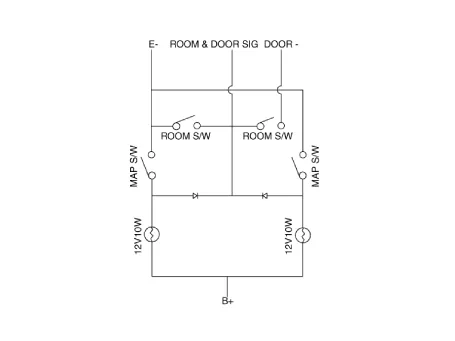

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Pin
Descripton
1
 Door
2
 -
3
 Battery (+)
4
 -
5
 Ground
6
 Room lamp

Removal
1.
Disconnect the negative (-) battery terminal.
2.

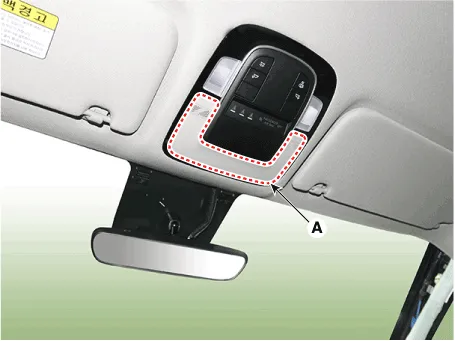

Remove the overhead console cover (A).
3.

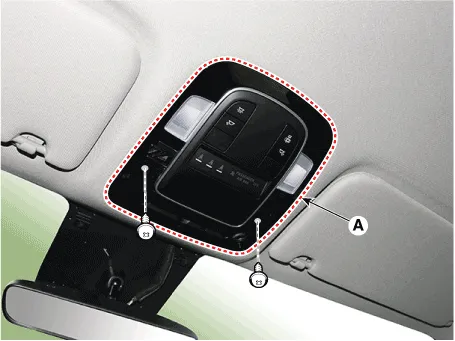

Remove the mounting screws (2EA).
And then remove the overhead console (A).
4.

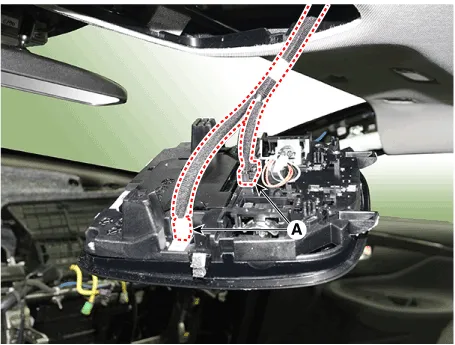

Remove the overhead console after disconnect the connector (A).
Installation
1.
Install the overhead console lamp after connecting the connector.
2.
Install the lens after tightening 2 screws.

    Inspection 1. Remove the room lamp assembly then check for continuity between terminals. Removal 1.

    Removal 1. Disconnct the negative (-) battery terminal. 2. Remove the A/C contrrol unit.
