Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.
Remove the front door trim.
(Refer to Front door - "Front Door Trim")
2.

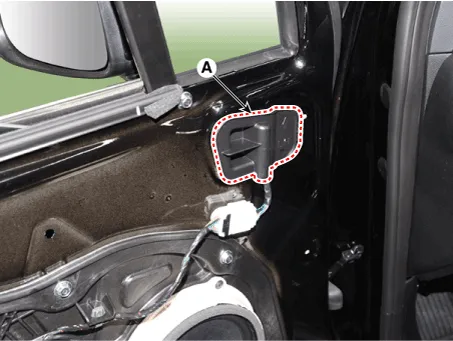

Using a screwdriver or remover, remove the outside rear view mirror inner cover (A).
3.

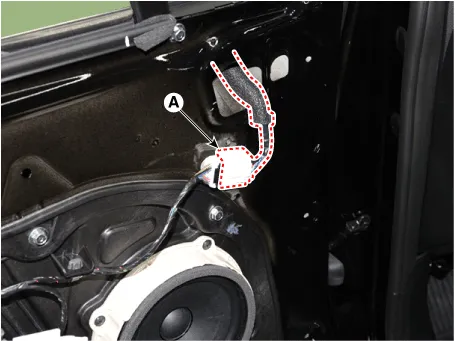

Press the lock pin, separate the outside rear view mirror connector (A).
4.

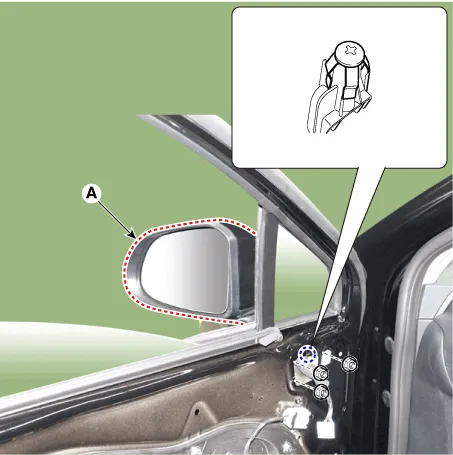

Loosen the mounting nuts and clip, remove the outside rear view mirror (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1kgf.m , 5.1 - 8.0 lb-ft)

5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
