Removal

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Disconnect the battery negative "-" terminal.
2.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
3.
Disconnect the compressor ECV connector, and then by loosening the mounting bolts, widen the gap between the compressor from the engine to remove the A/C compressor bracket.
(Refer to Air Conditioning System - "Compressor")
4.
Remove the A/C compressor bracket (A).
Tightening torque :
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

5.

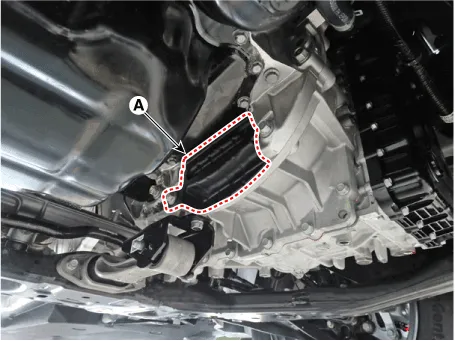

Remove the dust cover (A).
Tightening torque :
42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)

6.

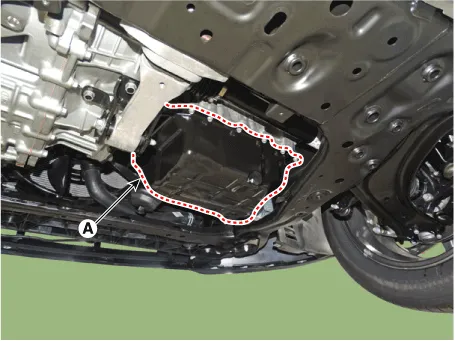

Remove the oil pan (A). Insert the blade of SST (09215-3C000) between the ladder frame and oil pan. Cut off applied sealer and remove the lower oil pan.


•
Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of ① arrow.
•
After tapping the SST with a plastic hammer along the direction of ② arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
•
Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
Installation
1.
Install the oil pan.
(1)
Using a gasket scraper, remove all the old sealant material from the gasket surfaces.
(2)

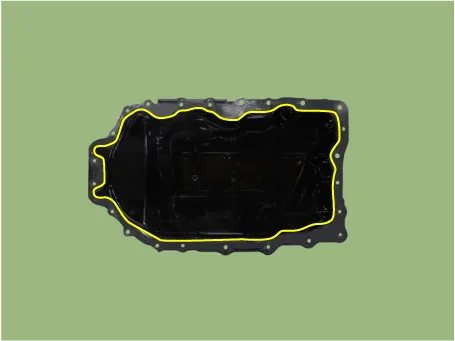

Before assembling the oil pan, liquid sealant Loctite 5900H, Threebond 1217H or equivalent should be applied on oil pan. The part must be assembled within 5 minutes after sealant was applied.
Bead width : 2.5 mm (0.1 in.)


•
When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
•
To prevent leakage of oil, apply sealant gasket on the inner threads of the bolt holes.
(3)
Install the oil pan (A). Uniformly tighten the bolts in several passes.
Tightening torque
Bolts B (M9) :
26.5 - 30.4 N.m (2.7 - 3.1 kgf.m, 19.5 - 22.4 lb-ft)
Bolts C (M6) :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)


•
After assembly, wait at least 30 minutes before filling the engine with oil.

•
Always use a new drain plug gasket.
2.
Install the A/C compressor bracket (A).
Tightening torque :
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

3.
Install the A/C compressor mounting bolts.
(Refer to Heateng, Ventilation, Air conditioning - "Compressor")
4.
Refill engine with engine oil.
