Hyundai Santa Fe (TM): Lubrication System / Oil Level Gauge & Pipe. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe. Repair procedures

Removal and Installation

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.

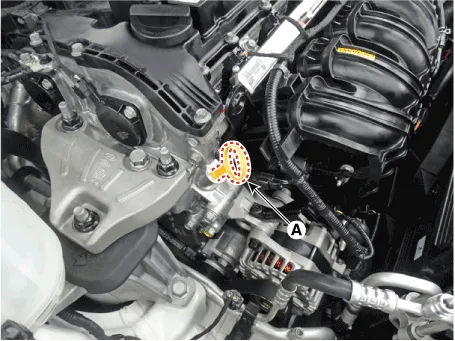

Remove the oil level gauge (A).
2.
Remove the timing chain cover.
(Refer to Timing System - "Timing Chain Cover")
3.

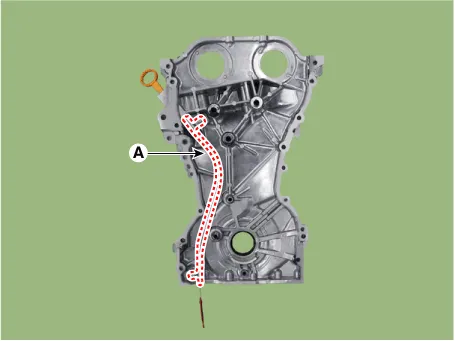

Remove the oil level pipe (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

4.
Install in the reverse order of removal.
