Hyundai Santa Fe (TM): Lighting System / License Lamps. Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

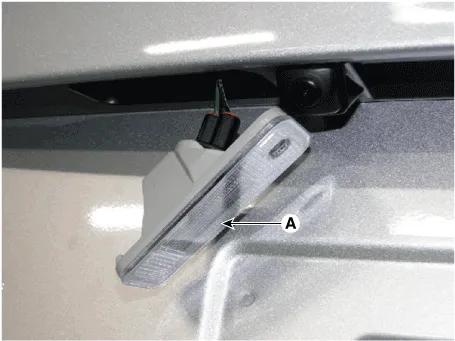

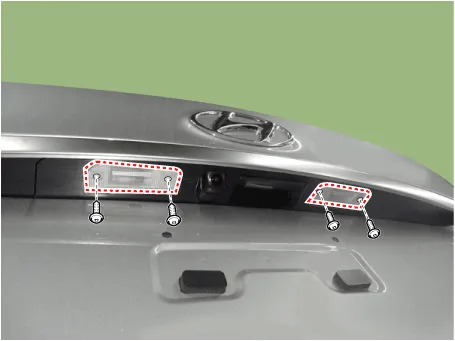

Remove the license lamp lens (A) from the panel after loosening a screw.
|
| 3. |

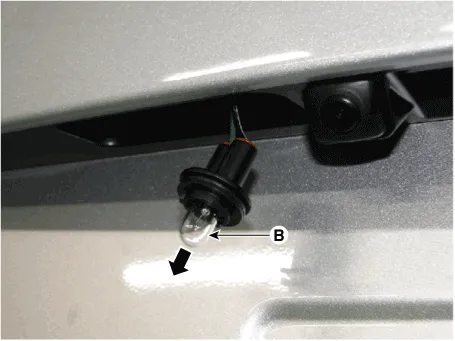

Replace the bulb (B) after removing the license lamp (A).
|
| Installation |
| 1. |
Install the bulb.
|
| 2. |
Install the license lamp lens.
|
