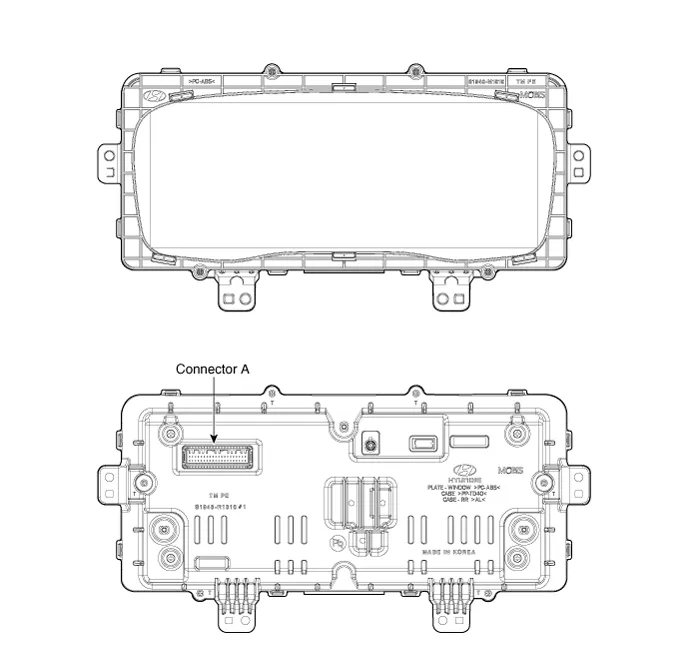

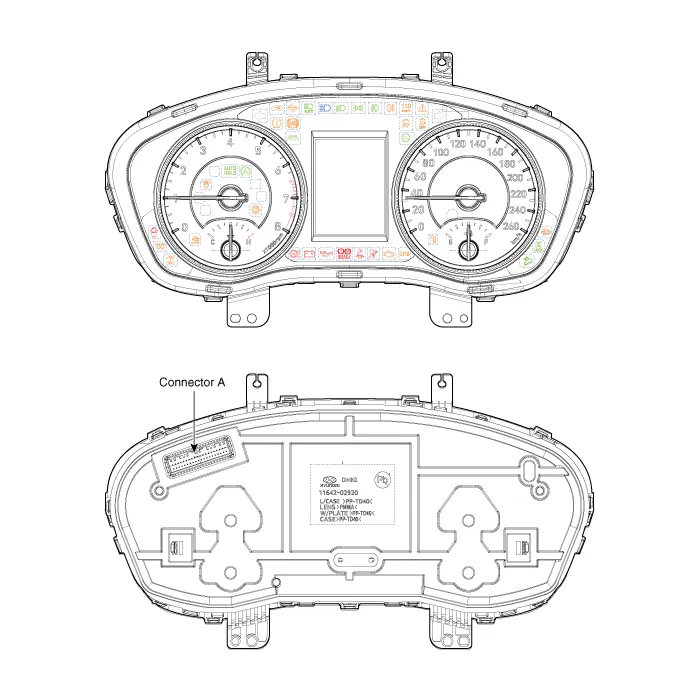

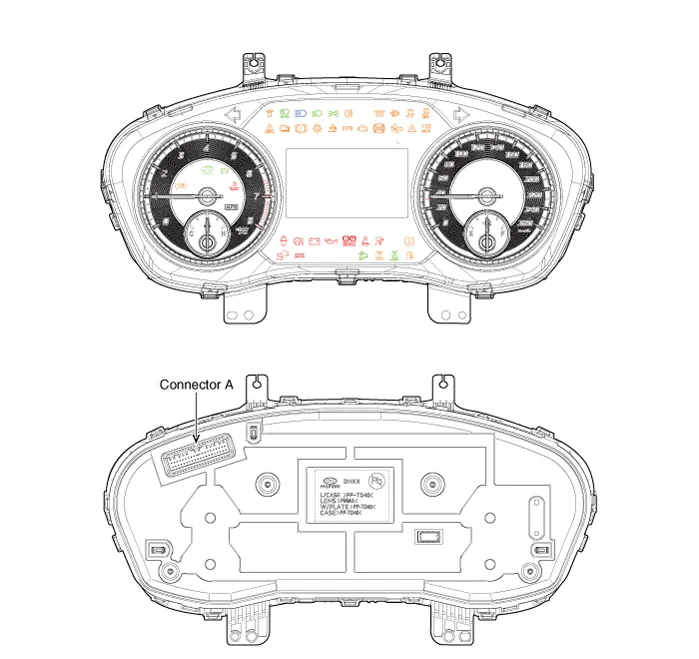

| Components |




|
No. |

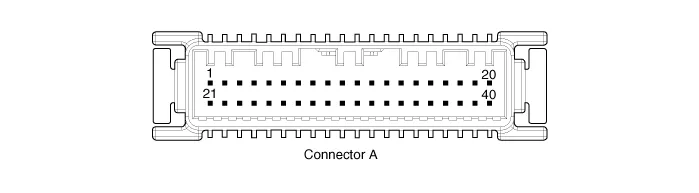

Connector A |
No. |
Connector |
|
1 |
Ground |
21 |
Trip switch (-) |
|
2 |
Illumination (-) |
22 |
Trip switch 1 (+) |
|
3 |
Rheostat switch (Down)_Input |
23 |
Trip switch 2 (+) |
|
4 |
Rheostat switch (Up)_Input |
24 |
Active ECO_input switch/ R switch(M/T)_input |
|
5 |
Dentent |
25 |
Driver mode switch/ N switch(M/T)_input |
|
6 |
P |
26 |
Speaker1 (+)_Output |
|
7 |
R |
27 |
Speaker1 (-)_Output |
|
8 |
N |
28 |
Low washer level_Input |
|
9 |
D |
29 |
M-CAN (Low) |
|
10 |
S |
30 |
M-CAN (High) |
|
11 |
Immobilizer_Input |
31 |
Engine run state_Output |
|
12 |
Vehicle speed_Output |
32 |
C-CAN (High) |
|
13 |
AlTL_Input |
33 |
C-CAN(Low) |
|
14 |
Fuel sender (+)_Input |
34 |
Outside temperature_Input |
|
15 |
Vehicle speed_Input |
35 |
- |
|
16 |
Fuel sender (-)_Input |
36 |
Heated steering wheel indicator_Input |
|
17 |
Water separate_Input |
37 |
Ground |
|
18 |
Airbag (+)_Input |
38 |
IGN 3 |
|
19 |
Oilpressure switch_Input |
39 |
IGN 1 |
|
20 |
Taillamp_Input |
40 |
Battery (+) |
Description Communication Network Diagram Abbreviation Explanation IBU Interated Body Control Unit DDM Driver Door Module PTGM Power Tail Gate Module ICU Interated Control Unit PCU Powertrain Control Unit ECU Engine Control Unit CLU Cluster MDPS Moter Driven Power Steering SVM Sorround View Monitor ACU Airbag Control Unit VDC Vehicle Dynamic Control SCC Smart Cruise Control DBL Dynamic banding Light LKA Lane Keeping Assist BCW Blind-Spot Collision Warning RVM Rear View Monitor SAS Steering Angle Sensor HUD Head up Display TCU Transmission Control Unit MTC Temp Control DATC Dual Automatic Temp Control 4WD Four Wheel Drive F/PUMP Fuel Pump Control Module V/PUMP Vacuum Pump OCS Occupant Classification System WPC Wireless Power Chager IMS Integrated Memory System AMP Amplifier AVN Head Unit (Audio / AVN) HUD Head Up Display
Circuit Diagram MONO TFT LCD 3.5 Inch TFT LCD 4.2 Inch Color 12.3 Inch
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower assembly. (Refer to Heater - "Heater Unit") 3. Remove the heater core.
