Replacement
[ECM Mirror]

•
Put on gloves to prevent hand injuries.
1.

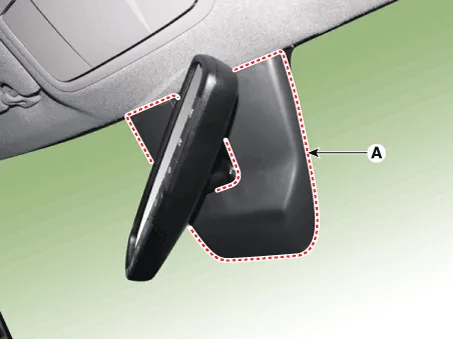

Remove the ECM mirror cover (A).
2.

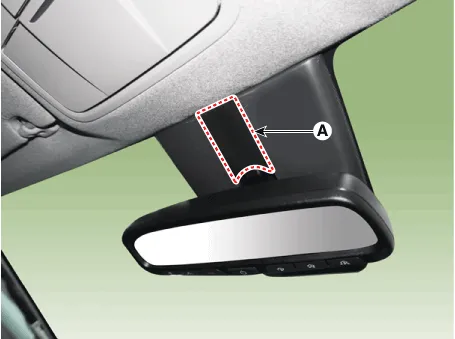

Remove the rain sensor cover (A).
3.

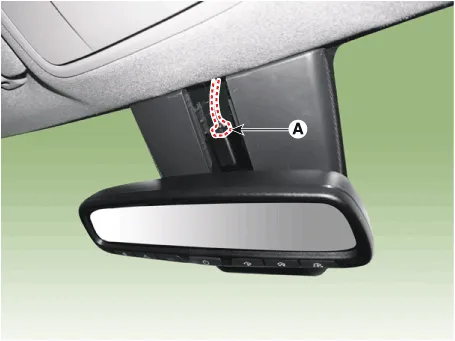

Disconnect the ECM mirror connector (A).
4.
Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Be careful not to damage the windshield glass.
[General Mirror]

•
Put on gloves to prevent hand injuries.
1.

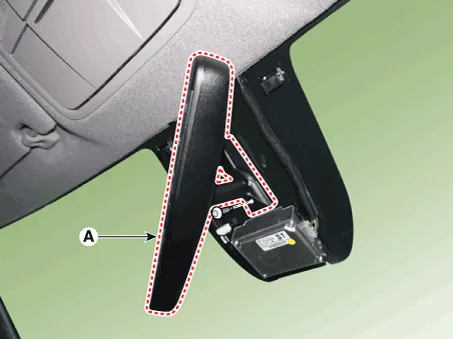

Loosen the mounting screw and remove the inside rear view mirror assembly (A).
2.
To install, reverse the removal procedure.

    Component Location 1. Inside Rear View Mirror
