Hyundai Santa Fe (TM): IMS (Integrated Memory) / IMS (Integrated Memory System) module. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / IMS (Integrated Memory) / IMS (Integrated Memory System) module. Components and components location

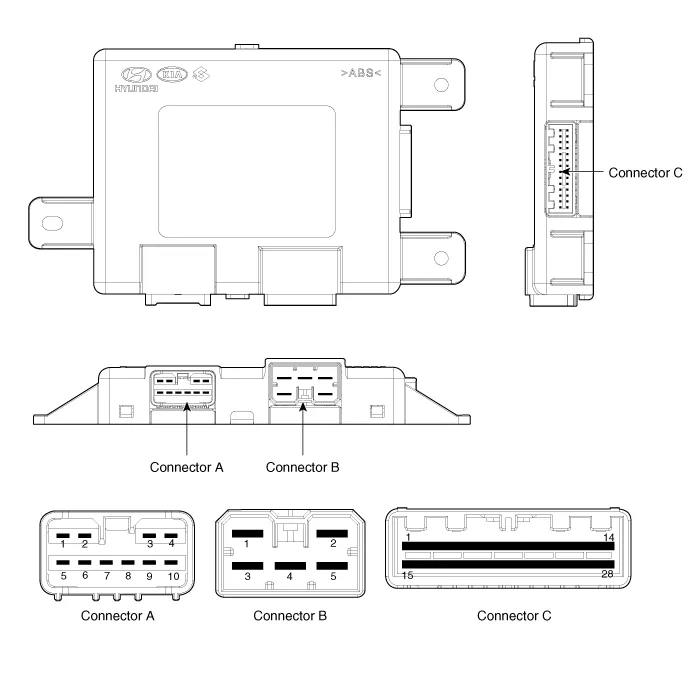

| Components |
IMS input/output pin information
|
No |
Connector A |
Connector B |
Connector C |
|
1 |
Cushion extension moter (Forward) |
B+ (Power) |
Seat slide motor switch (Forward) |
|
2 |
Seat recline motor (Forward) |
Ground (Power) |
Seat recline switch (Forward) |
|
3 |
Seat height motor (Up) |
B+ (Power) |
Seat tilt switch (Up) |
|
4 |
Seat slide motor(Forward) |
- |
Seat height switch (Up) |
|
5 |
Seat Cushion extension moter (Backward) |
Ground |
Seat cushion extension switch (Forward) |
|
6 |
Seat recline motor (Backward) |
|
B_CAN (High) |
|
7 |
Seat tilt motor (Up) |
B_CAN (Low) |
|
|
8 |
Seat tilt motor (Down) |
Driver lumber support motor (Up) |
|
|
9 |
Seat height motor (Down) |
Driver lumber support motor (Mid) |
|
|
10 |
Seat slide motor (Backward) |
Seat slide sensor |
|
|
11 |
|
Seat tilt sensor |
|
|
12 |
Seat recline limit switch (Forward) |
||
|
13 |
Seat position sensor power |
||
|
14 |
IGN 1 |
||
|
15 |
Seat slide switch (Backward) |
||
|
16 |
Seat recline switch (Backward) |
||
|
17 |
Seat tilt switch (Down) |
||
|
18 |
Seat height switch (Down) |
||
|
19 |
Seat cushion extension switch (Backward) |
||
|
20 |
Ground |
||
|
21 |
Driver lumber support motor (Low) |
||
|
22 |
- |
||
|
23 |
Driver lumber support motor (Def) |
||
|
24 |
Seat recline sensor |
||
|
25 |
Seat height sensor |
||
|
26 |
Seat cushion extension limit sensor |
||
|
27 |
Seat recline limit switch (Backward) |
||
|
28 |
Battery (+) |

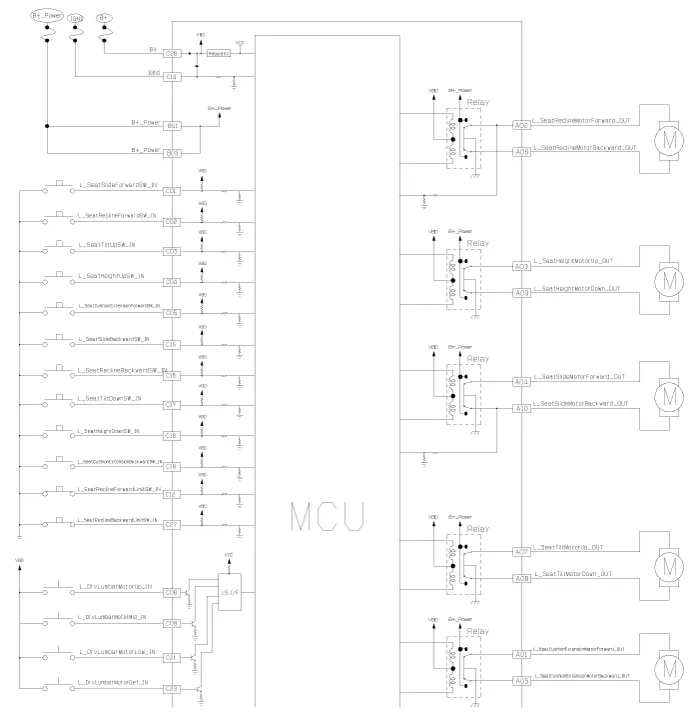

Circuit Diagram

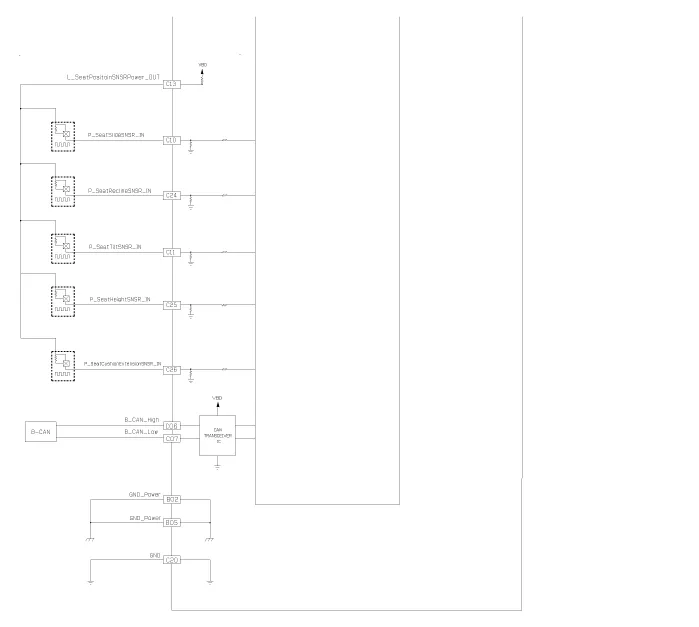

Circuit Diagram
Removal 1. Remove the negative (-) battery terminal. 2. Remove the front seat assembly.
