Hyundai Santa Fe (TM): IMS (Integrated Memory) / IMS Control Switch. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / IMS (Integrated Memory) / IMS Control Switch. Components and components location

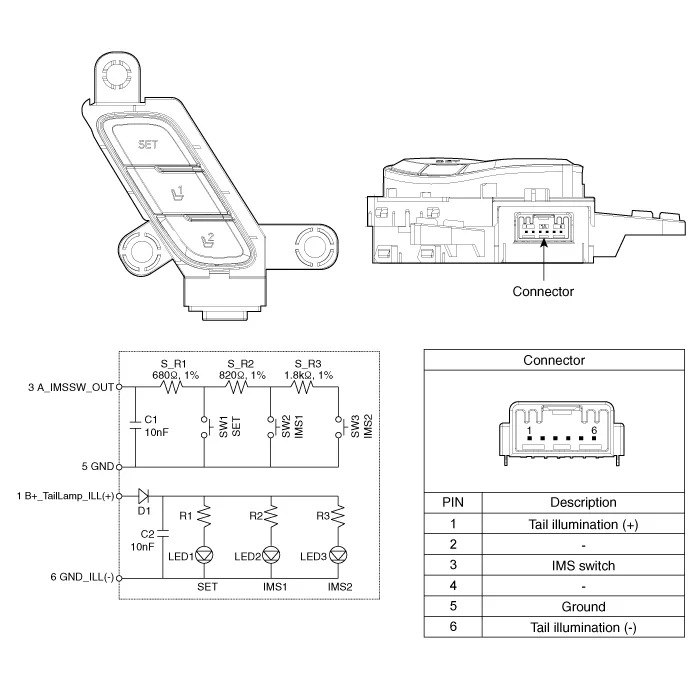

| Components |
Removal 1. Remove the negative (-) battery terminal. 2. Remove the front seat assembly.
Inspection 1. Disconnect the IMS control switch connector. 2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below.
