Hyundai Santa Fe (TM): Immobilizer System / Immobilizer Control Unit. Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the glove box housing.
(Refer to Body - "Glove Box Housing Cover")
|
| 3. |

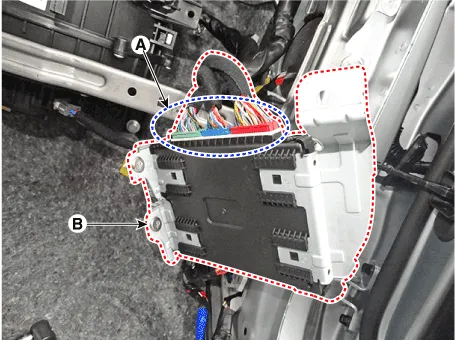

Disconnect the connector (A) and then remove the IBU (B) after loosening
a nut.
|
| Installation |
| 1. |
Install the IBU after connecting the unit connector.
|
| 2. |
Install the glove box housing.
|
| 3. |
Connect the negative (-) battery terminal.
|
