Hyundai Santa Fe (TM): Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box. Description and operation
| Description |

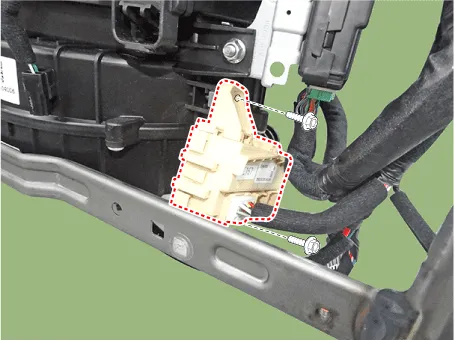

The ICM relay is united with (rear wiper relay, seat heater relay(front/rear),
head lamp washer relay and rear A/C relay) which installed inside the lower
crash pad.
Fuse Inspection 1. Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders.
Inspection Power Child Lock Check for continuity between the terminals. 1. There should be continuity between the No.
