Hyundai Santa Fe (TM): Hood / Hood Lift. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Hood / Hood Lift. Repair procedures

Replacement

•
When removing and installing the hood lifter, an assistant is necessary.
•
When removing the clips, use a clip remover.
1.

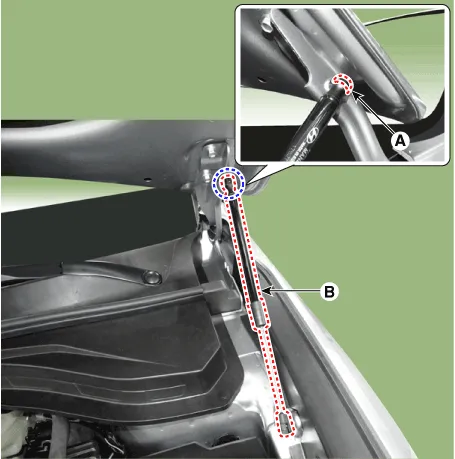

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B).
2.
Push the socket of the lifter into the bracket for installation.

•
Make sure the hood locks/unlocks and opens/closes properly.

    Replacement 1. Using a clip remover, remove the clips and then the hood insulator pad (A).    • Be careful not to scratch the hood panel.

    Replacement 1. Remove the hood weatherstrip (A).    • Be careful not to scratch the hood weatherstrip.
