Hyundai Santa Fe (TM): Lighting System / High Mounted Stop Lamp. Repair procedures
| Removal |
| High Mounted Stop Lamp |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the rear spoiler.
(Refer to Body - "Rear Spoiler")
|
| 3. |

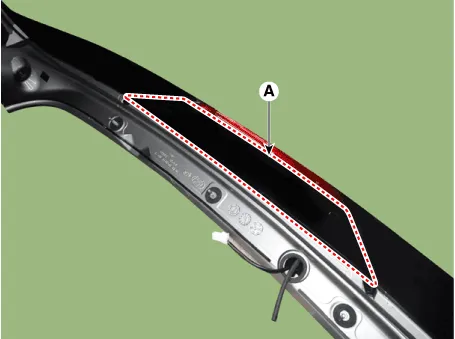

Remove the high mounted stop lamp cover (A).
|
| 4. |

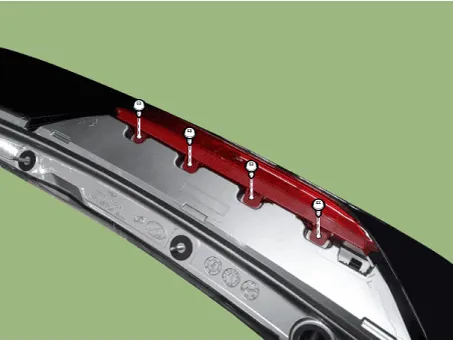

Remove the high mounted stop lamp assembly (A) after loosening screws
(4EA).
|
| Installation |
| 1. |
Install the high mounted stop lamp.
|
| 2. |
Install the rear spoiler.
|
| 3. |
Connect the negative (-) battery terminal.
|
