Hyundai Santa Fe (TM): Front Seat Belt / Height Adjust. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust. Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.

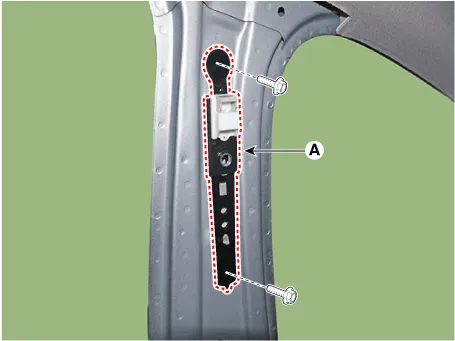

After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Height Adjust

    Component Location 1. Front seat belt buckle
