Hyundai Santa Fe (TM): Heater / Heater Unit. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Heater / Heater Unit. Components and components location

Component Location

1. Heater Unit Assembly

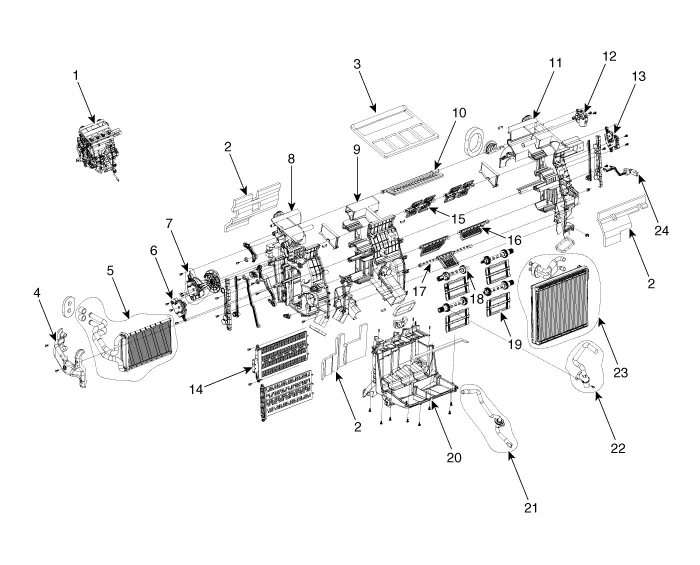

Components

1. Heater unit assembly
2. Heater NVH pad
3. Heater seal duct
4. Heater tube cover
5. Heater core assembly
6. Tempearture control actuator (Single)
7. Mode control actuator
8. Heater case [LH]
 9. Heater divider plate
10. DEF door assembly
11. Heater case [RH]
12. Auto defogging actuator
13. Temperature control actuator (Dual)
14. PTC heater
15. VENT door assembly
16. Floor door assembly
 17. Mode door assembly
18. Temperature door shaft
19. Temperature door assembly
20. Heater drain fan
21. Drain hose assembly
22. Aspirator hose
23. Evaporator core assembly
24. Evaporator temperature sensor

    Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station.
