Hyundai Santa Fe (TM): Head Up Display System / Head Up Display Unit. Repair procedures
|
1. |
Disconnect the negative (-) battery terminal.
|
|
2. |
Remove the instrument cluster.
(Refer to Indicators And Guages - "Instrument Cluster")
|
|
3. |

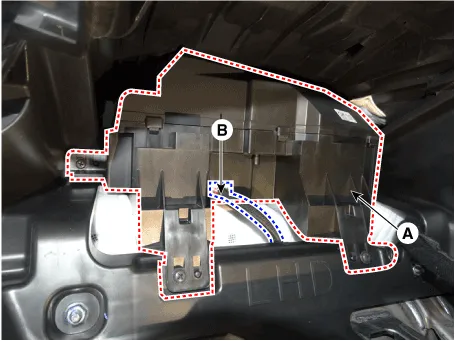

Remove the head up display unit (A) after disconneting the connector
(B) and loosening the mounting screws.
|
|
1. |
Install the head up display unit.
|
|
2. |
Install the instrument cluster.
|
|
3. |
Connect the negative (-) battery terminal.
|
If a part of the headup display footage is distorted or it is not at eye level
with the driver a Global Diagnostic System (diagnostic tool) can be used to
carry out calibration.
|
1. |
In case calibration is required
| –
|
When replacing the head-up display unit.
|
| –
|
In case the footage is distorted after replacing the windshield
(double vision removed after film is inner mounted to the glass).
|
| –
|
When the HUD mounted main crashpad is removed/installed or replaced.
|
| –
|
When the video installation location of the Head-up display
unit is not at eye level of the driver and the focus is inconsistent.
|
|
|
2. |
calibration items
No
|
Footage calibration functions
|
Calibration cases
|
1
|
Rotation : Calibration in the half-circle/clockwise direction based
on the center
|
|
2
|
Smile : Calibration based vertically on the center
|
|
3
|
Slanted(up/down) : Calibration according to an upward/downward slant
|
|
4
|
Slanted(left/right) : Calibration according to a left/right slant
|
|
5
|
Parallel compensation
|
|
6
|
Move location of mark to upward/downward : Compensation according
to eye height
|
|
7
|
Initialization : Changed to the status of before video compensation
|
|
|
Troubleshooting
Category
Error symptoms
inspection item
Detailed inspection item
Related parts
Lighting
•
HUD not working
•
Lighting brightness not automatically controlled (no difference
between day and night)
•
Check the lighting control
•
Check the ambient light sensor operation
•
Check the CAN communication
•
Check the lighting control in the cluster USM
→ If working, HUD has no problem.
