Hyundai Santa Fe (TM): Lighting System / Hazard Lamp Switch. Repair procedures
| Removal |
| 1. |
Disconnct the negative (-) battery terminal.
|
| 2. |
Remove the A/C contrrol unit.
(Refer to Heating, Ventilation and Air Conditioning - "Controller")
|
| 3. |

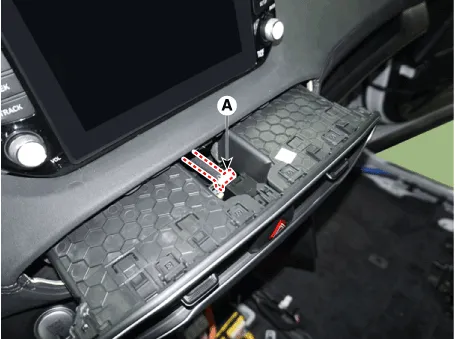

Remove the hazzard lamp switch.
|
| 4. |
Disconnect the connector and then remove the hazzard lamp switch.
|
| Installation |
| 1. |
Install the hazzard lamp switch.
|
| 2. |
Connect the negative (-) battery terminal.
|
Inspection 1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
