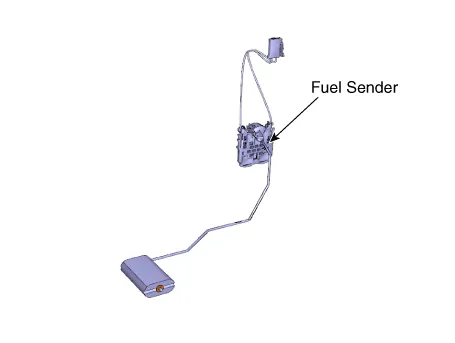

Hyundai Santa Fe (TM): Fuel Delivery System / Fuel Sender. Repair procedures
| Removal |
| 1. |
Remove the fuel pump.
(Refer to Fuel System - "Fuel Pump")
|
| 2. |

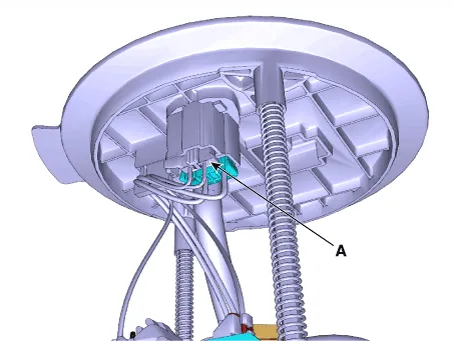

Disconnect the fuel sender connector (A).
|
| 3. |
Release the fixing hook (A) and then remove fuel sender (B) in the arrow
direction.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
