Hyundai Santa Fe (TM): Fuel Delivery System / Fuel Pump Motor. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Control/Fuel System / Fuel Delivery System / Fuel Pump Motor. Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel System - "Fuel Pump")
2.

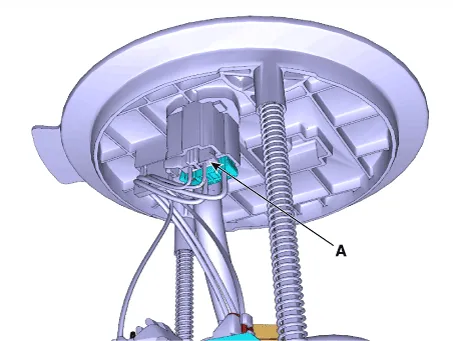

Disconnect the fuel sender connector (A).
3.
Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.
4.
Remove the fixing pin (A) and then disconnect the fuel feed tube (B).
5.
Disconnect the fuel pump motor connector (A).
6.
Release the fixing hook (A) and then remove the head assembly (B).
7.
Release the fixing hook (A) and then remove the reservoir-cup (B).
8.
Disconnect the fuel pump motor connector (A).
9.
Disconnect the ground cable (B).
10.
Remove the fixing pin (A) and then disconnect the fuel pressure regulator (B).
11.
Release the fixing hook and then remove the assist pump (A).
12.
Separate the fuel pump hose (A) after releasing the clamp (B).


•
Replace the clamp with a new one when reinstalling the clamp.
13.

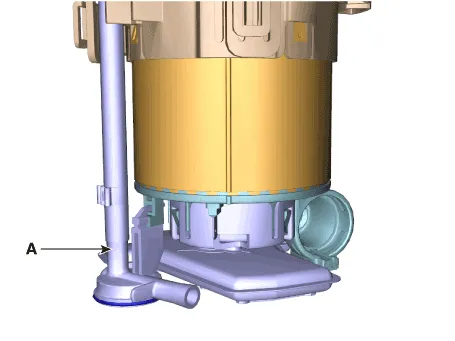

Remove the pump filter & fuel pump (A) after releasing the hooks.
Installtion
1.
Install in the reverse order of removal.
