Hyundai Santa Fe (TM): Fuel Delivery System / Fuel Pressure Regulator. Repair procedures
| Removal |
| 1. |
Remove the fuel pump.
(Refer to Fuel System - "Fuel Pump")
|
| 2. |
Disconnect the fuel sender connector (A).
|
| 3. |

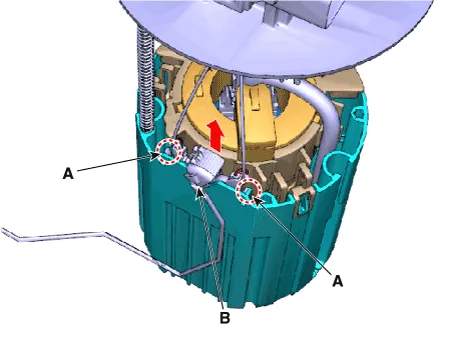

Release the fixing hook (A) and then remove fuel sender (B) in the arrow
direction.
|
| 4. |

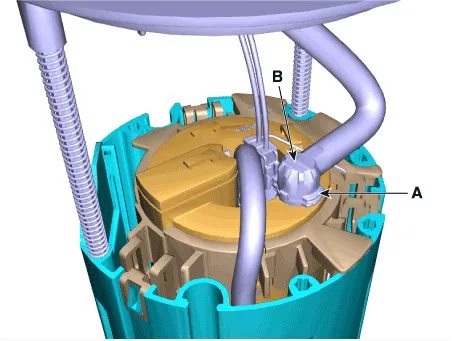

Remove the fixing pin (A) and then disconnect the fuel feed tube (B).
|
| 5. |

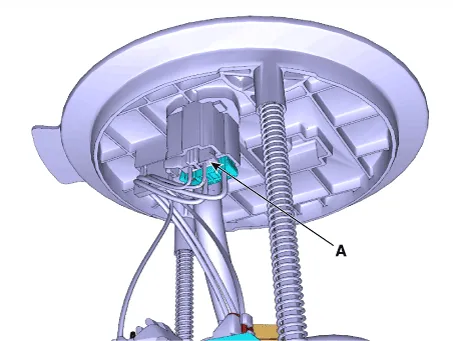

Disconnect the fuel pump motor connector (A).
|
| 6. |

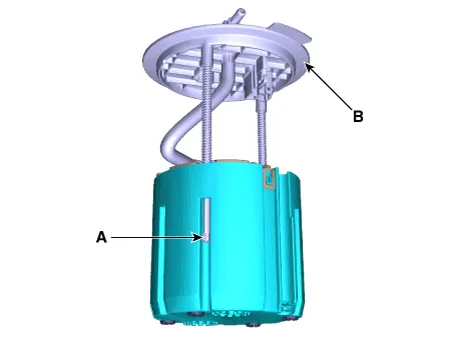

Release the fixing hook (A) and then remove the head assembly (B).
|
| 7. |

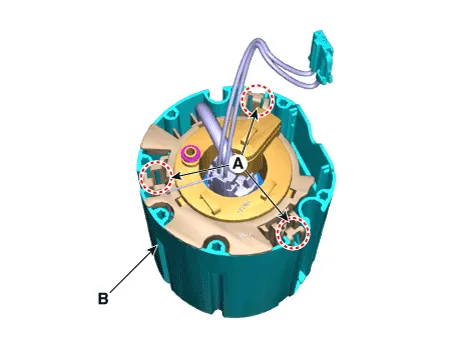

Release the fixing hook (A) and then remove the reservoir-cup (B).
|
| 8. |

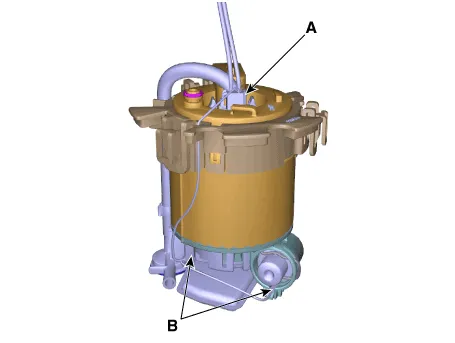

Disconnect the fuel pump motor connector (A).
|
| 9. |
Disconnect the ground cable (B).
|
| 10. |

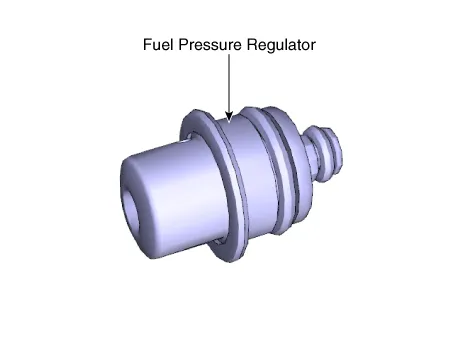

Remove the fixing pin (A) and then disconnect the fuel pressure regulator
(B).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
