Hyundai Santa Fe (TM): Front Suspension System / Front Strut Assembly. Components and components location

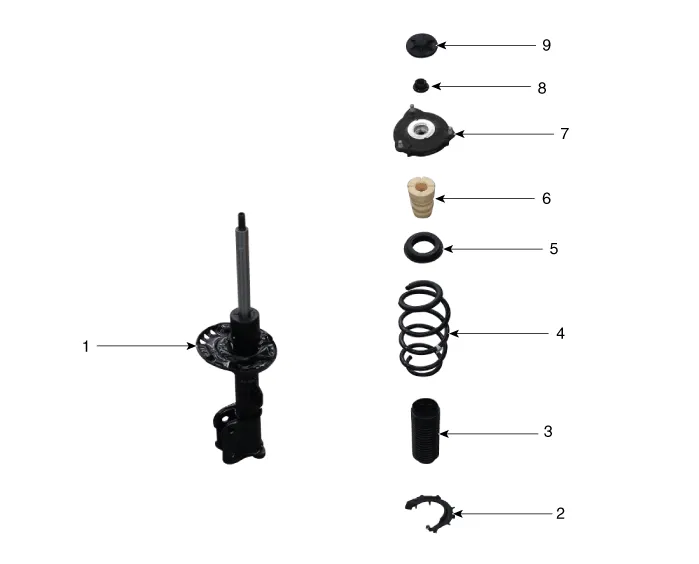

| Components |
| 1. Strut assembly 2. Spring lower pad 3. Dust cover 4. Coil spring 5. Spring upper pad |
6. Bumper rubber 7. Insulator assembly & sturt bearing 8. Lock nut 9. Insulator cap |
Components Location 1. Front sub frame 2. Drive shaft 3. Steering gear box 4. Front stabilizer bar 5.
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2.
