Hyundai Santa Fe (TM): Front Seat / Front Seat Shield Outer Cover. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Using a screwdriver and remove the forward cover.
3.

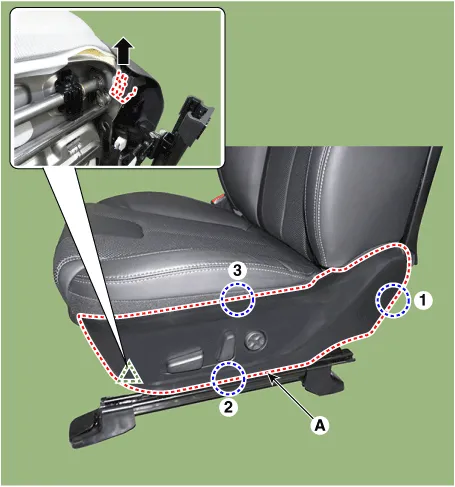

Remove the front seat outer shield cover.
(1)
Using a screwdriver or remover and remove the rear hook ①.
(2)
Remove the lower hook ② by pulling it aside
(3)
Remove the upper steel clip ③ and the hook ② by pulling them aside.
(4)
Remove the front seat outer shield cover (A) by pulling it forward as shown by the arrow.

•
Front Seat Outer Shield When removing the cover, pay attention to the removal order and direction.
•
Be careful not to damage the hooks and brackets.

4.

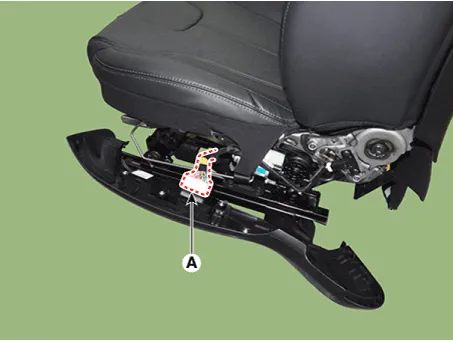

Separate the front seat power swich connector (A).
5.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front seat shield outer cover

    Component Location 1. Front seat shield inner cover
