Hyundai Santa Fe (TM): Front Seat / Front Seat Frame Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat back cover.
(Refer to Front Seat - "Front Seat Back Cover")
2.
Remove the front seat cushion cover.
(Refer to Front Seat - "Front Seat Cushion Cover")
3.
Remove the SAB module.
(Refer to Restraint - "Side Airbag (SAB) Module")
4.
Remove the lumber support assembly.
(Refer to Body Electrical System - "Lumber Support Unit")
5.

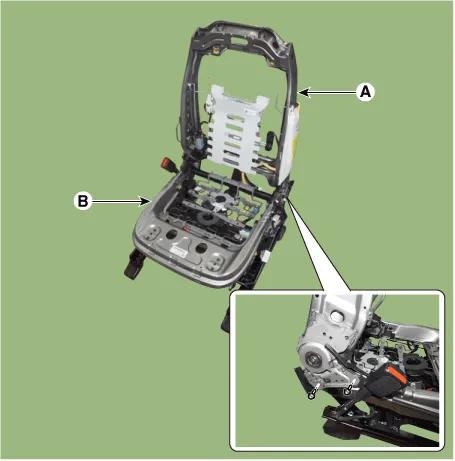

After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

6.
To install, reverse removal procedure.

•
For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.
(Refer to Restraint - "Side Airbag (SAB) Module")
•
Before service, be fully aware of precautions and service procedure relevant to air bag.
(Refer to Restraint - "Side Airbag (SAB) Module")

    Component Location 1. Front seat back frame assembly 2. Front seat cushion frame assembly
