| Removal |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |

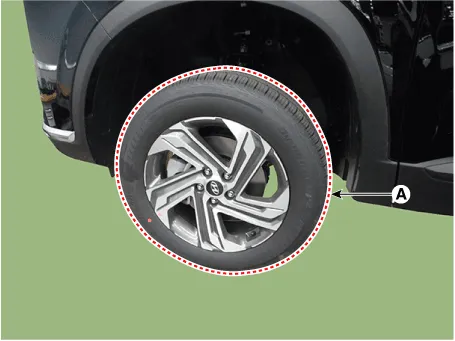

Remove the front wheel and tire (A) from the front hub.
|
| 3. |

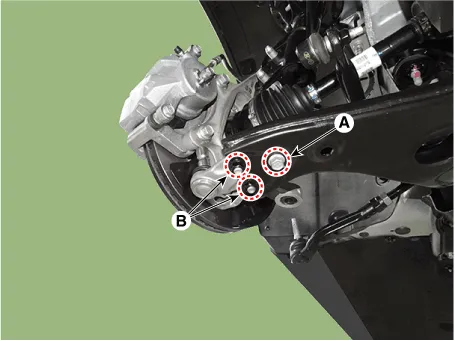

Remove the split pin and nut (A).
|
| 4. |

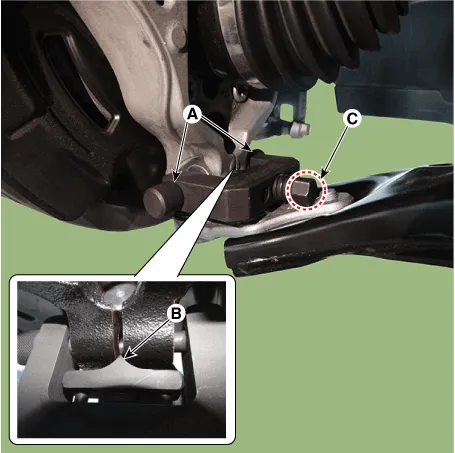

Remove the lower arm from the knuckle by using the SST (09568-4R100).
|
| 5. |

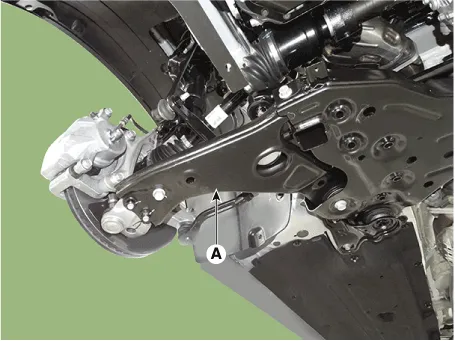

Remove the lower arm (A) from the sub frame after loosening the mounting
bolts.
|
| Inspection |
| 1. |
Check the bushing for wear and deterioration.
|
| 2. |
Check the lower arm for bending or breakage.
|
| 3. |
Check the lower arm for deformation.
|
| 4. |
Check the all bolts and nuts.
|
| Replacement |
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |
Remove the front wheel and tire (A) from the front hub.
|
| 3. |
Remove the split pin and nut (A).
|
| 4. |
Remove the lower arm from the knuckle by using the SST (09568-4R100).
|
| 5. |

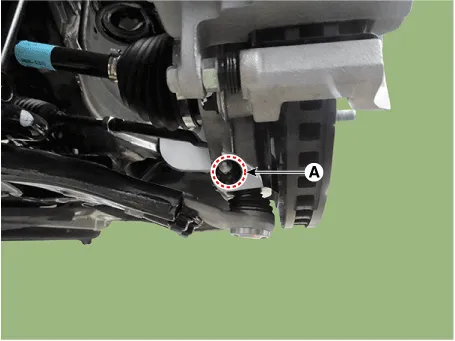

Remove the ball joint assembly after loosening the bolt (A) and nut
(B).
|
