Hyundai Santa Fe (TM): SRSCM / Front Impact Sensor (FIS). Components and components location

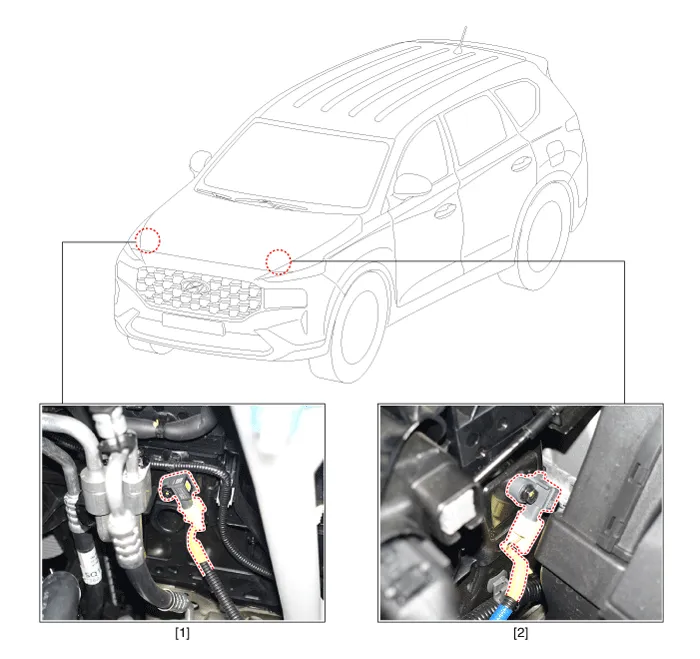

| Components |
| 1. Front impact
sensor (FIS) [RH] |
2. Front impact
sensor (FIS) [LH] |
Description The front impact sensor (FIS) is installed in the Front End Module (FEM). They are remote sensors that detect acceleration due to a collision at its mounting location.
Removal • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
