| Removal |
|
| 1. |
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
|
| 2. |
Remove the front wheel and tire (A) from the front hub.
|
| 3. |

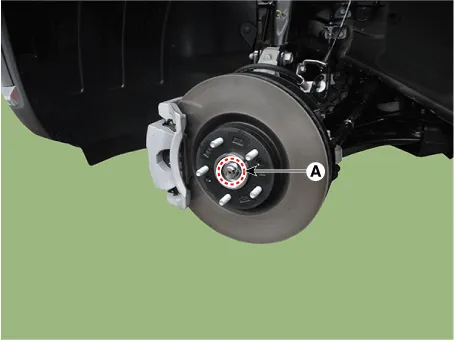

Loosen the driveshaft caulking nut (A) from the front hub.
|
| 4. |
Remove the split pin and nut (A).
|
| 5. |
Remove the tie rod end ball joint (A) using the SST (09568-2J100).
|
| 6. |
Remove the split pin and nut (A).
|
| 7. |

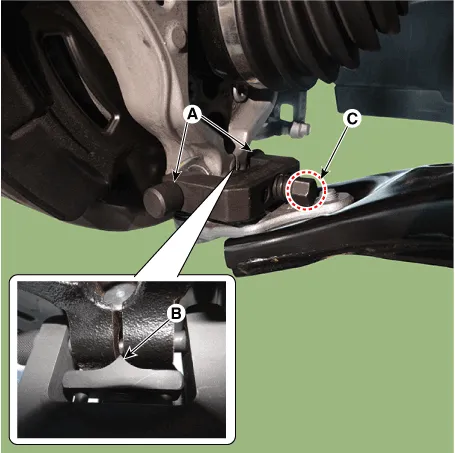

Remove the lower arm from the knuckle by using the SST (09568-4R100).
|
| 8. |
Remove the drive shaft (A) from the front axle assembly (B).
|
| 9. |
Remove the driver side drive shaft (B) using the pry bar (A).
|
| 10. |
Rmove the passenger side driveshaft after loosening the inner shaft
mounting bolts (A).
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Check the alignment.
(Refer to Suspension System - "Alingment")
|
