Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.

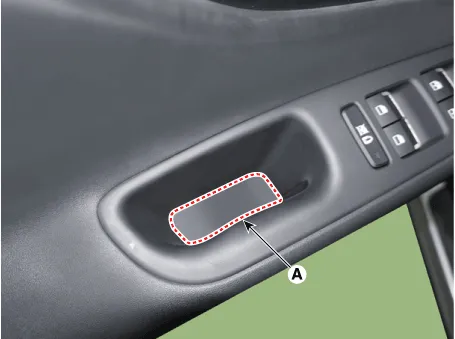

Using a flat-tip or remover, remove the front door pull handle mounting cap (A).
2.
After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.
3.

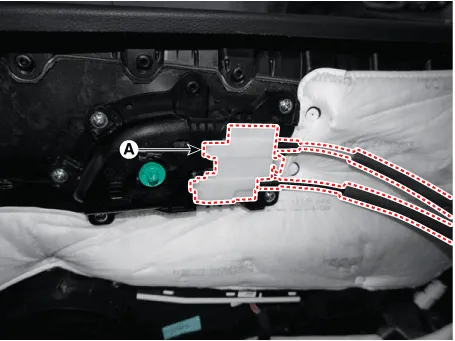

Remove the front door inside handle cage (A).
4.

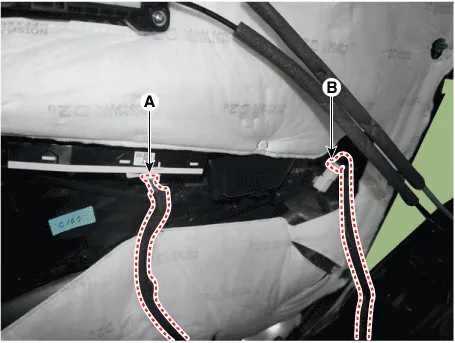

Disconnect the front door window connector (A) , mirror switch connector (B).
5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.
