Replacement
1.

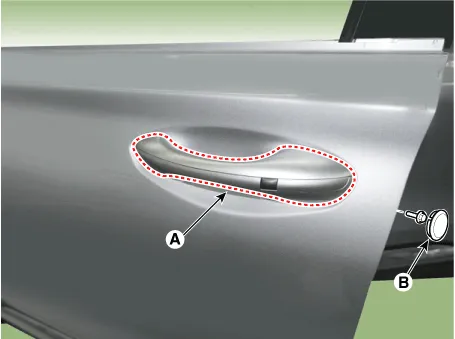

Remove the plug hole (B).
2.
After loosening the mounting bolt, remove the front door outside handle (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

3.

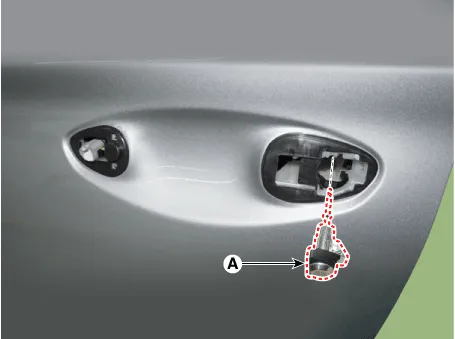

Press the lock pin and separate the front door outside handle connector (A).
4.

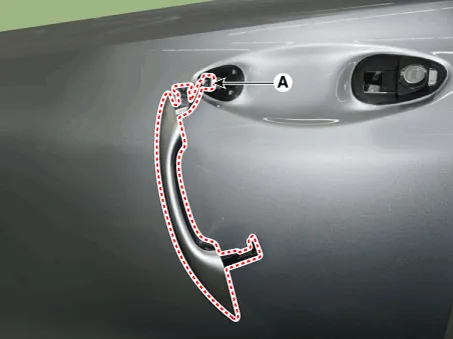

Remove the front door lock assembly (A).
5.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•

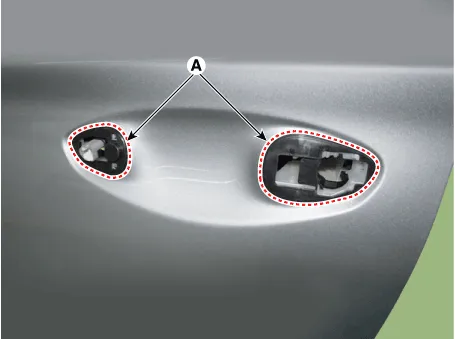

Be sure to install the outside handle pad (A) between the outside handle and the door panel.

    Component Location 1. Front door outside handle

    Component Location 1. Front Door Latch
