Hyundai Santa Fe (TM): Front Door / Front Door Latch. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Latch. Repair procedures

Replacement
1.
Remove the front door module.
(Refer to Front Door - "Front Door Module")
2.

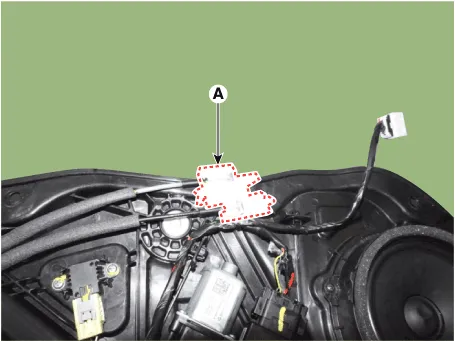

Remove the front door inside handle case (A).
3.

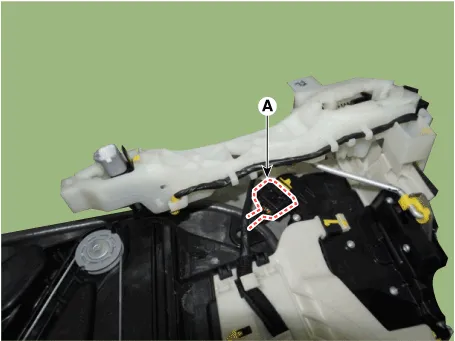

Press the lock pin and separate connector (A).
4.

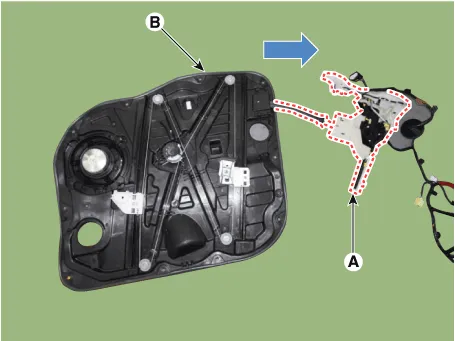

Remove the front door latch (A) from the module (B) by pushing it in the direction of the arrow.
5.

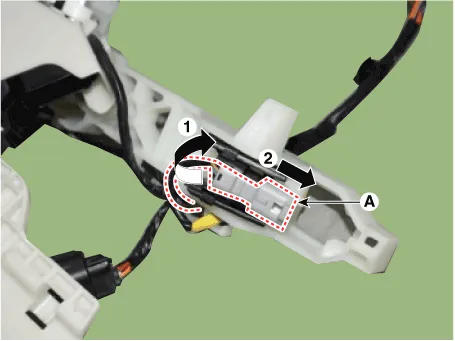

Remove the front door outside handle base connector (A).
6.

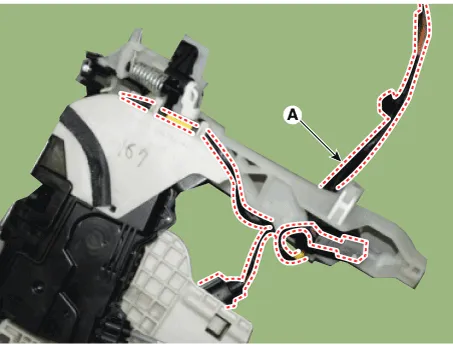

Separate the wiring harness (A) from the top of the front door out side handle base.
7.

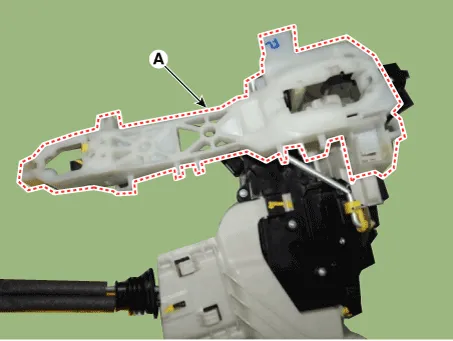

Remove the front door outside handle base braket (A).
8.

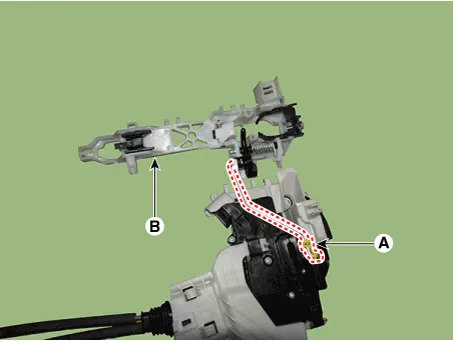

Loosen the front door outside handle rod (A) and remove the front door outside handle base (B).
9.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
