Hyundai Santa Fe (TM): Front Door / Front Door Inside Handle. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle. Repair procedures

Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

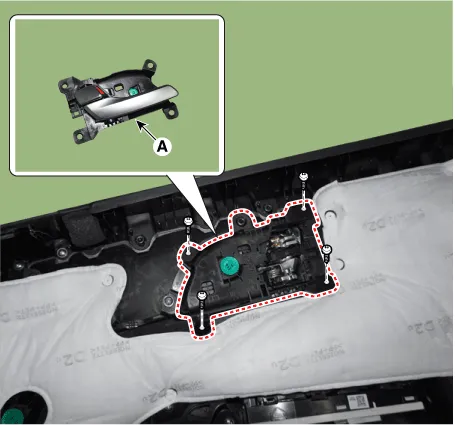

After loosening the mounting screws, remove the front door inside handle (A).
3.
To install, reverse removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
