Hyundai Santa Fe (TM): Front End Module / Front Bumper Beam Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front End Module / Front Bumper Beam Assembly. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Disconnect the battery (-) terminal.
2.
Remove the front bumper assembly.
(Refer to Front Bumper - "Front Bumper Assembly")
3.
Remove the front radar unit.
(Refer to Advanced Driver Assistance System (ADAS) - "Front Radar Unit")
4.

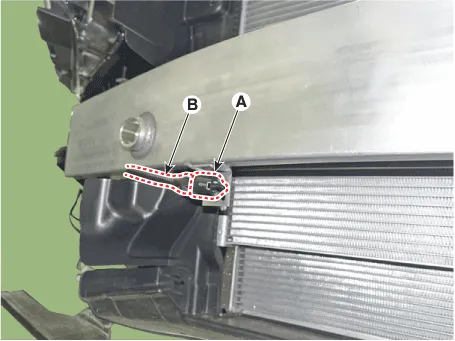

Disconnect the connector (A) and then remove the ambient temperature sensor (B).
5.
Loosen the bolts, nuts and remove the front bumper beam assembly (A).
6.
To install, reverse removal procedure.

    Components Location 1. Front bumper beam assembly

    Components Location 1. Carrier assembly
