Hyundai Santa Fe (TM): Front Bumper / Front Bumper Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Assembly. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

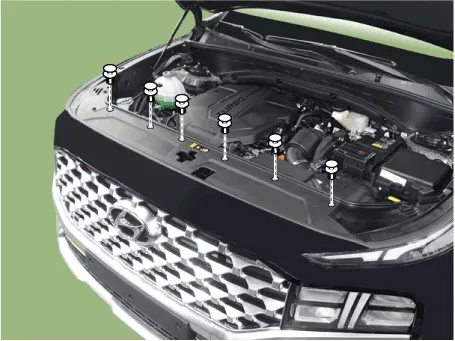

Loosen the front bumper upper mounting clips.
2.
Loosen the front bumper lower mounting clips.
3.

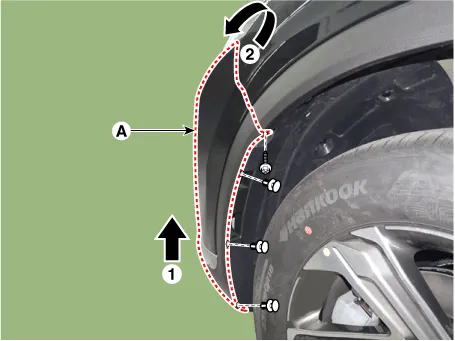

Loosen the mounting clis and screws on the side of front bumper (A), detach the side part of front bumper.

•
When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.

4.
Press the lock pin and separate the front bumper main connector (A).
5.

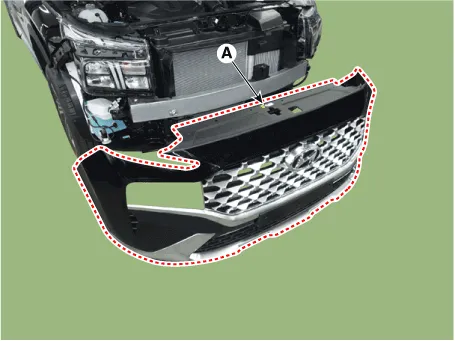

Remove the front bumper assembly (A).
6.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front Bumper Assembly

    Component Location 1. Radiator Grill
