Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly. Components and components location

Component Location (1)

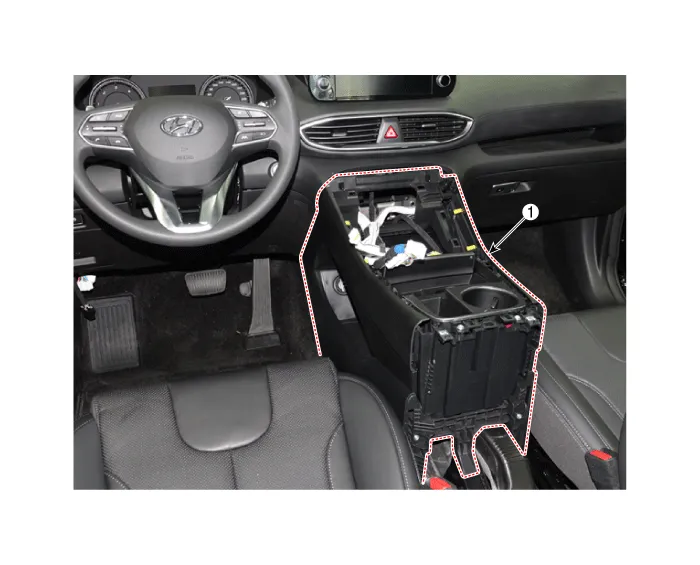

1. Front Console Assembly

Component Location (2)

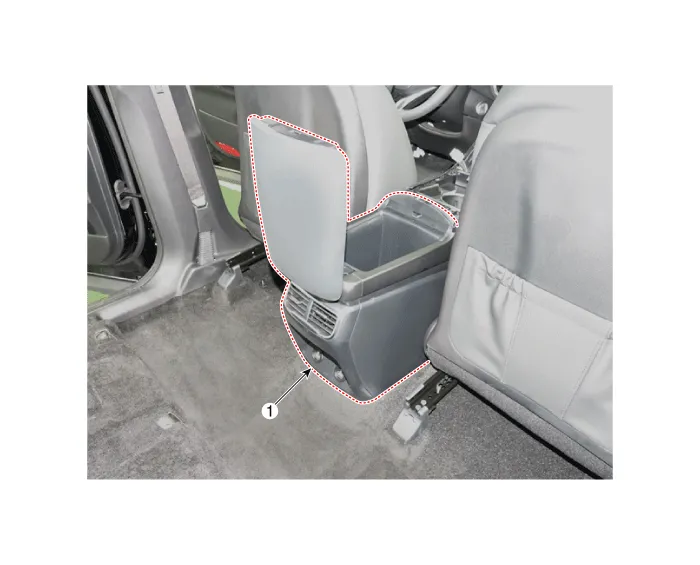

1. Rear Floor Console Assembly

    Components 1. Floor console side cover 2. Floor console upper cover 3. Console armrest lock assembly 4. Storage box mat 5.

    Replacement [Rear Floor Console Assembly]    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
