Hyundai Santa Fe (TM): AVN System / External Amplifier. Repair procedures

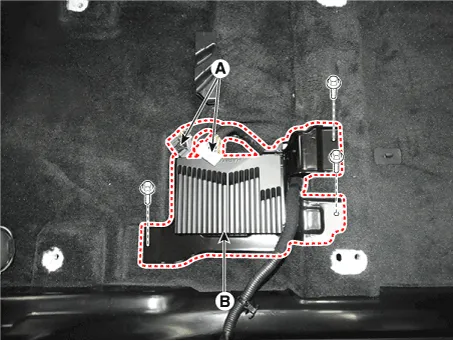

Components Europe Connector Pin Information No Connector A Connector B 1 Battery (+) Rear left door speaker (+) 2 Battery (+) Rear left door speaker (-) 3 Battery (+) Rear right door speaker (+) 4 Battery (+) Rear right door speaker (-) 5 - - 6 M-CAN (High) - 7 M-CAN (Low) - 8 ACC - 9 Navigation voice (+) - 10 - - 11 - - 12 Front left door speaker (+) Surround left speaker (+) 13 Front left door speaker (-) Surround left speaker (-) 14 Front right door speaker (+) Surround right speaker (+) 15 Front right door speaker (-) Surround right speaker (-) 16 Ground Sub woofer speaker1 (+) 17 Ground Sub woofer speaker1 (-) 18 Ground Sub woofer speaker2 (+) 19 Ground Sub woofer speaker2 (-) 20 SPDIF (+) - 21 SPDIF (-) - 22 SPDIF ground - 23 Navigation voice (-) - 24 IGN 1 25 Front left tweeter speaker (+) - 26 Front left tweeter speaker (-) - 27 Front right tweeter speaker (+) Center speaker (+) 28 Front right tweeter speaker (-) Center speake (-) General Connector Pin Information No Connector A Connector B 1 Battery (+) Sub woofer speaker2 (+) 2 Battery (+) Sub woofer speaker1 (+) 3 Battery (+) Front right door speaker (+) 4 Battery (+) Front left door speaker (-) 5 - - 6 M-CAN (High) - 7 M-CAN (Low) - 8 ACC - 9 Navigation voice (+) - 10 - - 11 - - 12 Front right tweeter speaker (+) Rear right door speaker (+) 13 Front left tweeter speaker (+) Rear left door speaker (+) 14 Front center speaker (+) Surround right speaker (+) 15 - Surround left speaker (+) 16 Ground Sub woofer speaker2 (-) 17 Ground Sub woofer speaker1 (-) 18 Ground Front right door speaker (-) 19 Ground Front left door speaker (-) 20 SPDIF (High) - 21 SPDIF (Low) - 22 SPDIF ground - 23 Navigation voice (-) - 24 - - 25 Front right tweeter speaker (-) Rear right door speaker (-) 26 Front left tweeter speaker (-) Rear left door speaker (-) 27 Front center speaker (-) Surround right speaker (-) 28 - Surround left speaker (-)

Components
