Hyundai Santa Fe (TM): Vehicle Information, Consumer Information and Reporting Safety Defects / Exterior Overview

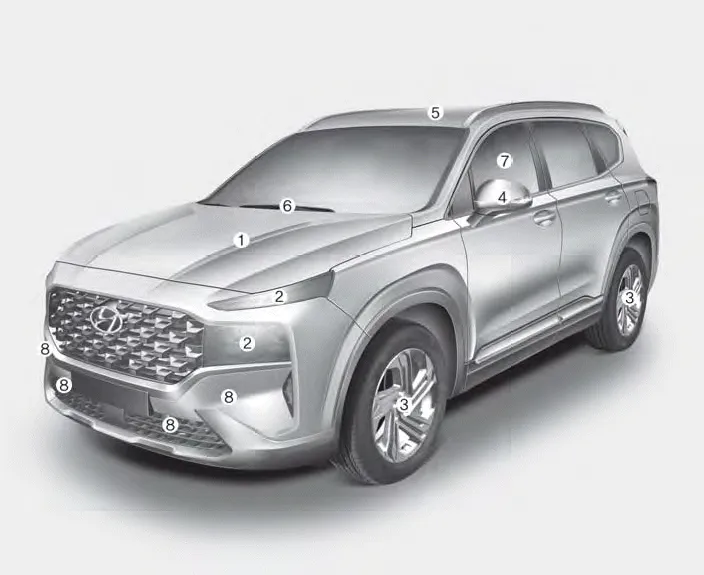

Exterior Overview (Front View)
1. Hood
2. Headlight
3. Tires and wheels
4. Side view mirror
5. Sunroof
6. Front windshield wiper blades
7. Windows
8. Front ultrasonic sensors
Exterior Overview (Rear View)
9. Door Handle
10. Fuel filler door
11. Rear combination lamp
12. Liftgate
13. High mounted stop lamp
14. Rear window wiper blades
15. Rear ultrasonic sensors
16. Antenna
17. Rear view camera
1. Inside door handle 2. Power window switches 3. Power window lock button/Electronic child safety lock button 4. Side view mirror folding button 5. Side view mirror control switch 6.
